Configuration Wizard

This section is dedicated to one of the most powerful tools within the MotionLab3 software. This is the configuration Wizard.

What is the configuration Wizard?

The configuration Wizard is a multi-step autoconfiguration procedure that will allow you to get an initial configuration of all the elements in your system that are connected to your Everest XCR/NET/CORE servo drive. It includes the following steps:

• Welcome
• Communications
• Safe Torque Off
• Motor
• Motor Temperature Sensor
• Brake Testing - Voltage Mode
• Limits
• Electrical Tuning
• Feedbacks
• https://novantamotion.atlassian.net/wiki/spaces/MOT3/pages/48071327
• Mechanical Identification
• Summary

How can the configuration Wizard be accessed?

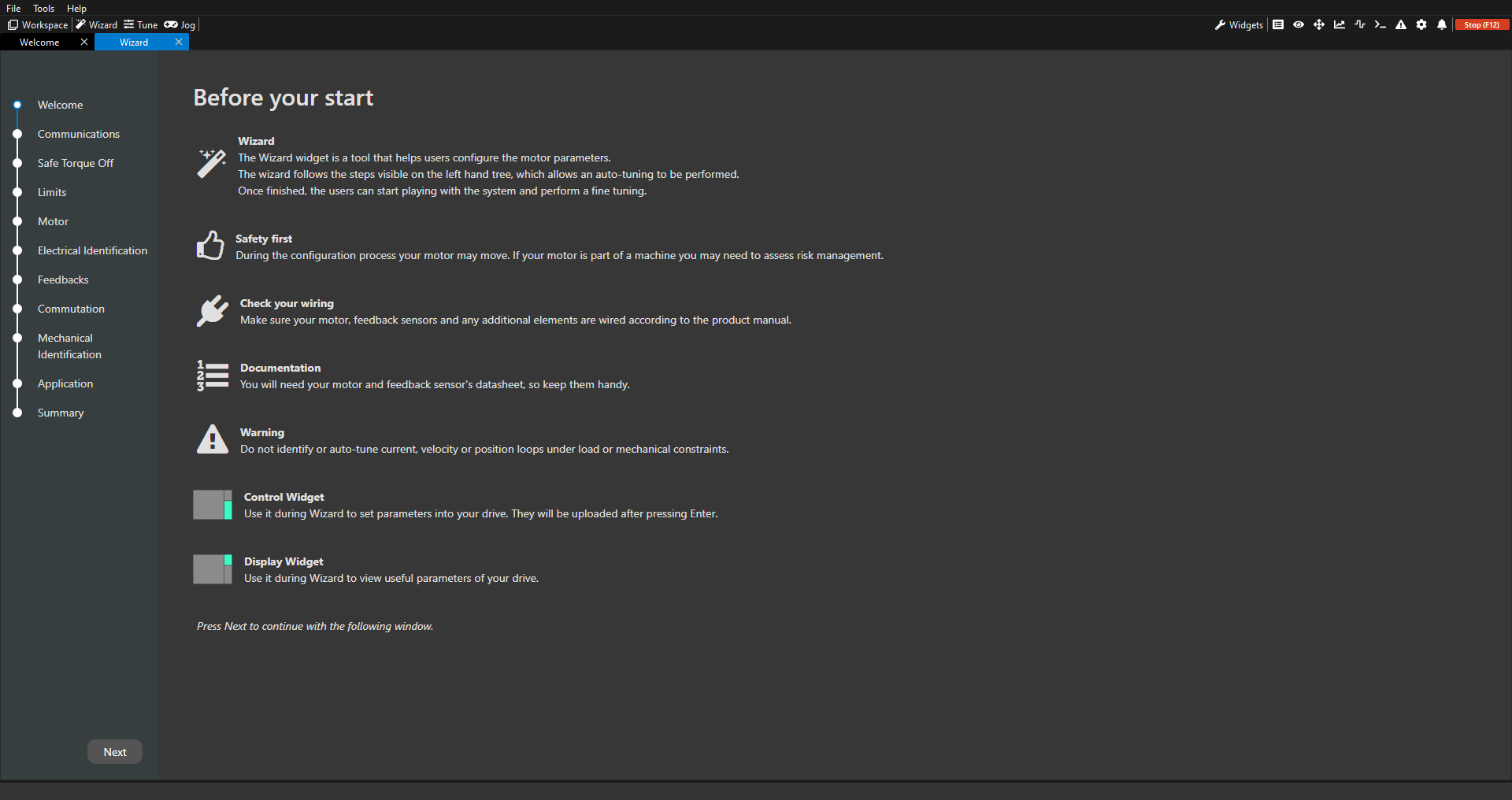

The configuration Wizard can be accessed by clicking the "START NOW" button that appears once you place your cursor on top of the "Configuration Tools" option in MotionLab3's initial window:
