DC bus bulk capacitance

Certain applications will require additional DC bus capacitance. Typically extra capacitors are needed in applications with long supply cables (with high parasitic inductance or resistance) or where the power supply does not tolerate a high current ripple. Adding the extra capacitors reduces the ripple current on supply lines and therefore reduces losses as well as electromagnetic interference (EMI). For best results, the capacitors should be connected to the DC link terminals on the back of the Titan. Since this drive includes automatic precharge circuits, there is no need for additional and bulky relays or precharge resistors.

For the Titan voltage and power ratings, Ingenia recommends metallized polypropylene film capacitors (MKP), as they provide the best trade-off of capacitance, ripple current and long term reliability.

Electrolytic capacitors provide higher energy density and lower cost, however only good quality, low ESR and high current ripple current are acceptable. Current ripple of the capacitor bank should be at least 0.4 * motor rated rms current at its operating temperature. Electrolytic capacitors must have low series resistance and be prepared for high current, otherwise they may overheat and be damaged. High power density applications could be also based on ceramic capacitors, however cost would increase dramatically. Custom versions of Titan can be provided with extra DC bus ceramic capacitance.

 Next there are some suggested capacitors that should be attached to the DC link terminals (not to the input supply):

ManufacturerPart numberCapacitance / TechnologyRated VoltagePhotoDimensionsComments
Kemet

C4DEFPQ6380A8TK

480 μF

MKP

400 VDC

Diameter 84.0 mm x 66.0 mm (height)Good trade off of capacitance / price. Height exceeds the Titan.
Panasonic

EZT-VKCTYP1HA

581 μF

MKP

450 VDC

164.0 mm x 115.0 mm x 43.0 mm (height)


Height is < Titan. This makes a low profile solution.

EPCOS

B25655P4707K031

700 μF

MKP

450 VDC


 237.0 mm x 72.0 mm x50.0 mm (height)-
EPCOS

B25655P4108K031

1000 μF

MKP

450 VDCHighest capacitance option on metal film. High cost.
Cornell Dubilier Electronics (CDE)

947D421K901BDMSN

420 μF

MKP

900 VDC

Diameter 90.0 mm x 88.0 mm (height)Good capacitance / price. Height exceeds the Titan. Recommended for 800 V version.
Cornell Dubilier Electronics (CDE)

947D601K901DCRSN

600 μF

MKP

900 VDC

Diameter 116.0 mm x 76.0 mm (height)

Good capacitance / price. Height exceeds the Titan. Recommended for 800 V version.

United Chemi-Con

E37F351CPN223MFM9M


22000 µF

Aluminum electrolytic

350 VDC

Diameter 89 mm x height 220 mm

Very high capacitance.

46.7 A ripple current.

4 mΩ ESR.

Nichicon

LNC2G123MSEJ


12000 µF

Aluminum electrolytic

400 VDC

Diameter 90 mm x height 148 mm

High capacitance. 37.1 A ripple current.

Comes with assembly bracket.

Low cost.

Follow these recommendations:

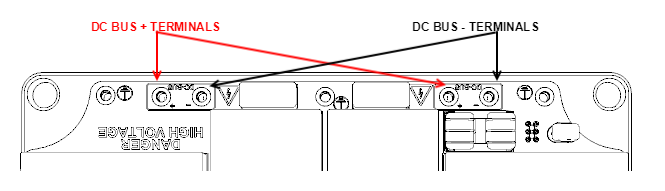

  • Use thick, as short as possible cables between the DC bus capacitor and the Titan.
  • Use the internal DC bus terminals to add the capacitance needed (see below).
  • Use M3 ring terminals like Phoenix Contact to connect to the internal DC bus terminals.
