Safety Manual - Safe Torque Off (STO)

The Safe Torque Off (STO) is a functional safety system that prevents motor torque in an emergency event while Capitan CORE remains connected to the power supply. When STO is activated, the power stage is disabled by hardware and the drive power transistors are disconnected, no matter what control or firmware does. The motor shaft will slow down until it stops under inertia and frictional forces. Although not common, in the event of a failure of the power stage during an STO situation, the maximum expected motor movement with torque can be up to 180º electrical degrees. The system must be designed to avoid any hazard in this situation.

If the STO inputs are not energized, the transistors of the power stage are turned off and an STO fault is notified. In order to activate the power stage, and therefore allow the motor operation, the two STO inputs must be energized (high level, typically 5V). STO inputs should not be confused with a digital input configured as enable input, because enable input is firmware controlled and does not guarantee intrinsic safety as it can be reconfigured by a user.

In order to ensure redundancy and safety, the Capitan CORE includes 2 separate STO inputs that must be activated or deactivated simultaneously (maximum 1.4 s mismatch). A difference of state between \STO1 and \STO2 inputs will be interpreted as an abnormal situation after 1.4 s the drive will be latched in a fault state. A power supply reset is necessary to remove this STO abnormal error.

Since Capitan CORE is a pluggable module intended for being integrated on an electronic interface board, it requires some external electronic components to fulfill the safety requirements:

  • External overvoltage protection (or equivalent) is required to limit STO input voltage.

  • Input current limiter to avoid system destruction in case of internal fault. The current limit can be implemented with a resistor in series.

  • Input low-state must be guaranteed by means of a pull-down resistor or equivalent (active output). Otherwise, safety function fault tolerance and reaction times, won't be fulfilled.

Safety Function Specifications

Safety Function Specification

Value

Standards compliance

  • EN 61800-5-2:2017

  • EN 61508:2010

  • EN ISO 13849-1:2015

Safety function

Safe Torque Off (STO)

Safety relevant parameters according to IEC 61508:2010

Safety integrity level

SIL3

PFH

2.42 x 10-11 1/h

SFF

> 99 % (High)

Safety relevant parameters according to EN ISO 13849-1:2015

PL

e

Category

3

DC

99% High

MTTFd

≥ 100 years (High)

Safety Function Reaction Time

t < 5.1 ms

The Safety Function Reaction time is measured as the time since one of the STO inputs (STO1 or STO2) goes below 0.8 V and the STO function actuates (power transistors deactivated).

Fault Reaction Time

t < 8 ms

The worst-case fault reaction time is on the event of an Abnormal STO.

High-demand mode

The EUC (Equipment Under Control) is considered as a high-demand or continuous demand mode system.

Mission Time

The mission time of the EUC is of 20 years.

Diagnostic Time Interval

In order to guarantee the correct operation of the safety functions, the user has to check the STO function regularly, performing an STO External Diagnostic Test (see further information below).

The diagnostic test interval is defined as a minimum of 1 activation per 3 months.

Integration Requirements

Functional Safety is only guaranteed within the following Integration Requirements.

Integration Requirement

Value

STO Interface electrical characteristics

Input pins

\STO1 and \STO2

Number of independent channels

2

Type of Inputs

Digital inputs with ESD protection.

Maximum nominal Voltage 7V. Maximum voltage in case of an external overvoltage fault 26.4 V.

Mandatory External Requirements

  • Input current limit (in case of internal short-circuit) = 50 mA

  • Resistive pull-down of maximum 7.5 kΩ or equivalent (active output with 660 µA min current sink capability).

  • Overvoltage protection on \STO signals, limiting to 26.4 V in case of external fault.

See “External Requirements for STO inputs and Logic Supply“ and Application Examples sections below

Maximum input LOW level (VIL)

0.8 V (below this value the STO is ACTIVE, no torque can be applied to the motor)

Minimum Input HIGH level (VIH)

2.8 V (above this value the STO input is inactive, torque can be applied to the motor)

Maximum absolute ratings

7 V max nominal voltage; 26.4 V maximum failure voltage

Input current (externally limited)

50 mA

ESD capability

IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)

STO Interface timing characteristics

STO activation time (Safety function Reaction Time)

t < 5.1 ms

STO deactivation time

t < 2 ms

Minimum, non-detected STO short pulse

t < 400 µs

The Safety controller can transmit short pulses to STOx inputs for diagnostics purposes. These pulses will be ignored by the safety circuit and will not stop the power stage.

Abnormal STO diagnostic time

≤ 5.2 ms (Activation STO)

Abnormal STO latching time

1.4 s ~ 3.4 s (Latching state, permanent activation of STO until power reset)

Power supply diagnostic time

3.3 V over-voltage 200 ns

Logic Supply Voltage Range

5 V ± 2% (nominal range from 4.9 V to 5.1 V; maximum voltage in case of external failure 26.4 V).

Safety function is maintained with an overvoltage failure within the specified range, but the other system functions could become non-operational.

Logic Supply Connection

In the event of a failure in the power stage, any logic interface except STO Inputs could become connected to Power Supply. Therefore, even when externally protected with an Overvoltage Protection, any logic interface pin could become connected to a dangerous voltage.

For this reason, the STO Inputs (or any other safety-related electronics) cannot share connection with the drive logic (i.e. logic supply) without protection elements in between.

See “External Requirements for STO inputs and Logic Supply“ and Application Examples sections below.

Power Supply Voltage Range 1

48 V SELV (range from 8 V to 60 V; maximum failure voltage 60 V)

Motor Type

STO safety function is only considered when the drive is controlling three-phase permanent magnet synchronous rotating motors. STO does not apply to DC brush motors.

Uncontrolled Motor Movement


Uncontrolled Motor Movement

In the event of a failure in the power stage, the motor shaft may rotate up to 180º electrical degrees. It is responsibility of the customer to prevent any hazards related ot this unexpected motor movement.


Environmental Conditions for STO2

Pollution degree

Pollution degree 2 with an IP54 enclosure installation.

Over-voltage category

II

Altitude

< 2000 m above sea level.

Operating Temperature

-20 ºC to 85 ºC

Storage Temperature

-40 ºC to 100 ºC

Vibration

5 Hz to 500 Hz, 4-5 g.

Test according to IEC 60068-2-6:2007-12: Test Fc

Shock

±15g Half-sine 11 msec

Test according to IEC 60068-2-27:2008-02: Shock

Diagnostics

Internal power supply voltage monitors.

Differences between STO1 and STO2 cause abnormal fault. After 1.4 s a hardware latching condition disables the drive until power cycling.

Status of STO1, STO2, STO_REPORT, ABNORMAL_FAULT, and SUPPLY_FAULT can be read from the communications.

STO firmware notification

A STO stop is notified to the motion controller and creates a fault that can be read externally from any communication interface, however, STO operation is totally independent and decoupled from control or firmware.


EMC

Functional Safety has been tested according to IEC 61800-3:2018 procedures with the extended ranges of IEC 61800-5-2:2017.

The interface board must meet the following EMC standards:

  • IEC 61800-3:2017

  • IEC 61000-6-2:2016

To fulfill the EMC requirements the use of the following elements is required:

  • Input EMI filter. Recommended: Cosel NBC-10-472 or equivalent.

  • Motor phases ferrite cable core. Recommended : 28B0773-050 or equivalent.

  • Properly grounded aluminum enclosure. See grounding recommendations for further information.

Environmental

The interface board must meet the following environmental standards:

  • IEC 60068-2-1:2007

  • IEC 60068-2-2:2007

  • IEC 60068-2-38:2009

  • IEC 60068-2-78:2012

  • IEC 60068-2-6:2007

  • IEC 60068-2-27:2008

1: Although the drive can operate in a wider range of voltages as can be seen in Product Description, the system cannot be considered safe outside this range.

2: The drive can operate outside this range as indicated in the Product Description, however, the system cannot be considered safe as the system reliability and safety margins would not meet the standards.

STO External Diagnostic Test

The operation of the STO diagnostic circuits must be verified at least once per 3 months. The following procedure details a method to verify the correct operation of the STO diagnostic circuits. Note that it is responsibility of the customer to prevent any hazards related to motor movement during this proof test.

The procedure requires the Capitan CORE to be connected to a brushless motor.

Procedure Step

Action

1

Power on the Capitan CORE with STO1 = low, STO2 = low.

2

Try to perform a "Motor Enable" (using Motionlab 3 or network commands).

3

Verify that the power stage is not enabled by software (a fault should appear) or by hardware (checking the Motor phases voltage with a multimeter).

4

Provide STO1 = high, STO2 = low. Remain in this state more than 3.4 seconds.

5

Try to perform a "Motor Enable" (using Motionlab 3 or network commands).

6

Verify that the power stage is not enabled by software (a fault should appear) or by hardware (checking the Motor phases voltage with a multimeter).

7

Provide STO1 = high, STO2 = high.

9

Try to perform a "Motor Enable" (using Motionlab 3 or network commands).

10

Verify that the power stage is not enabled by software (a fault should appear) or by hardware (checking the Motor phases voltage with a multimeter).

11

Shut-down Capitan CORE supply and remain in this state for more than 10 seconds.

12

Power on the Capitan CORE with STO1= low, STO2 = high. Remain in this state more than 3.4 seconds.

13

Try to perform a "Motor Enable" (using Motionlab 3 or network commands).

14

Verify that the power stage is not enabled by software (a fault should appear) or by hardware (checking the Motor phases voltage with a multimeter).

15

Provide STO1 = high, STO2 = high.

17

Try to perform a "Motor Enable" (using Motionlab 3 or network commands).

18

Verify that the power stage is not enabled by software (a fault should appear) or by hardware (checking the Motor phases voltage with a multimeter).

19

Shut-down Capitan CORE supply and remain in this state for more than 10 seconds.

20

Power on the Capitan CORE with STO1= high, STO2 = high.

21

Try to perform a "Motor Enable" (using Motionlab 3 or network commands).

22

Verify that the power stage can be enabled, allowing motor rotation. Do it by software (system should enter in motor enable state) or by hardware (checking the Motor phases voltage with a multimeter).

STO Operation States

The truth table of the STO inputs is shown next indicating the different states of the system:

Mode

State

STO1 status / level

STO2 status / level

Power stage status

STO report bit status

STO abnormal fault

State description

Normal operation

STO Enabled
(No torque to the motor)

0

< 0.8 V

0

< 0.8 V

OFF

0

0

The system logic is powered, but the STO function is activated. Therefore, no torque can be applied to the motor.

STO trip is reported to the MCU and to the safety circuitry. This is intended safe torque off with dual-channel operation.

Torque enabled

(STO inactive)

1

> 2.8 V

1

> 2.8 V

Can be enabled

1

0

The STO function is deactivated, and torque can be provided to the motor. The motor can run under firmware control. This is the normal operation state.

Abnormal operation


Abnormal STO

0

< 0.8 V

1

> 2.8 V

OFF

0

1

If any issue is detected on the dual-channel STO function (their state is different for a long period of time), an abnormal fault is active can be reported. This state avoids the application of torque to the motor. If this persists for > 1.4 s ~ 3.4 s the STO will lock in FAULT state. To reset this fault a power cycle is needed.

1

> 2.8 V

0

< 0.8 V

OFF

0

1

Abnormal STO Latched

x

-

x

-

OFF

NOR (STO1, STO2)

1

After >1.4 s ~ 3.4 s of abnormal STO active, the driver will stay in this state until the power supply cycle.

Abnormal Supply

x

x

x

x

OFF

x

x

If a voltage out of the limits is detected on the internal logic voltages, the system is conducted to a safe state, similar to power-off. Only if the safe logic voltages are recovered (usually after reparation or restart), the system can return to any other state.

STO1 and STO2 signals should always change at the same time with a maximum of 1.4 s mismatch. This is necessary to have 2 channel redundancy and allow diagnostics, as a mismatch will cause an abnormal fault.

External Requirements for STO inputs and Logic Supply

The following conceptual diagram summarizes the external requirements for the STO inputs and Logic Supply.


Application Examples

The following diagrams provide application examples, which could be further optimized or improved. For further circuit details or assessment, please contact Novanta.

External Requirements Example - 48V PSU

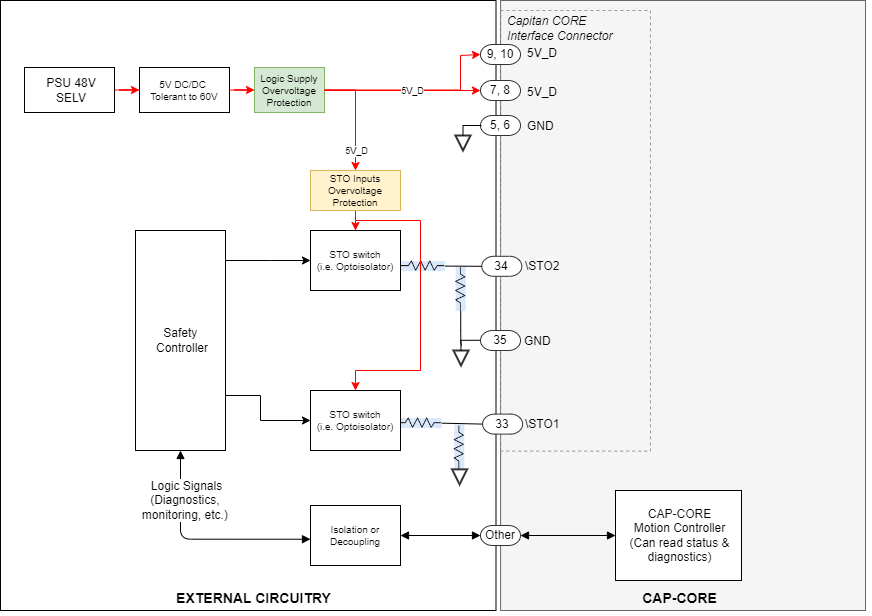

The following diagram depicts an example diagram about how to implement the External Requirements circuitry. This circuit is an example an is not space optimized.

  • The Logic Supply is protected from failures in the 5V DC/DC by means of the Logic Supply Overvoltage Protection.

  • The 5V DC/DC is tolerant to 60V input because PSU is SELV and could fail up to 60V.

  • STO Inputs are overvoltage protected by means of a single STO Inputs Overvoltage Protection (i.e a Voltage Monitor with cut-off capability) who supplies the output switches of an optoisolator.

  • The STO switch is implemented by means of Optoisolators to decouple the drive from the Safety Controller

  • The Safety Controller is also decoupled/isolated from the CAP-CORE non-safety-related nets (communications, feedbacks, etc.), which could carry dangerous voltages

External Requirements Example - 24V PSU

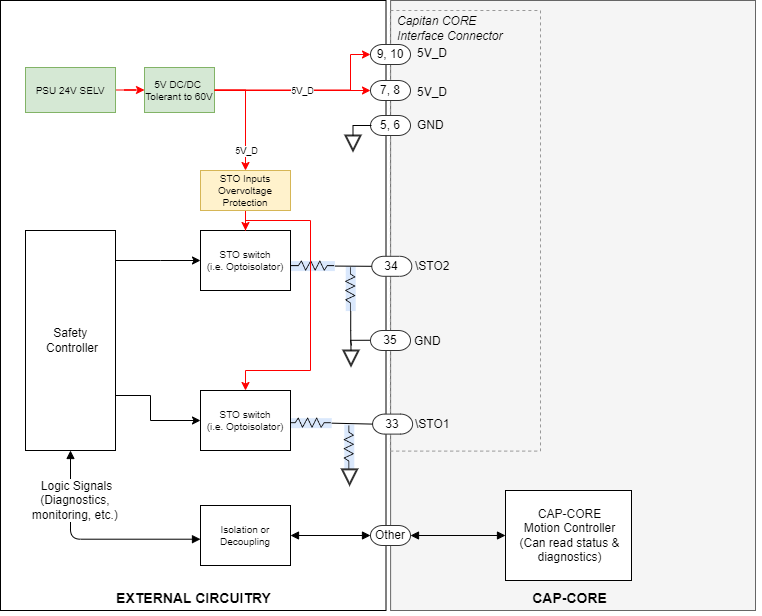

The following diagram depicts an example diagram about how to implement the External Requirements circuitry. This circuit is an example an is not space optimized.

  • The Logic Supply is generated from a 24V SELV PSU. In case of failures in the 5V DC/DC, the output would be < than 26.4V, and therefore, inside the overvoltage protection range of the Logic supply. For this reason, no additional overvoltage protection is needed.

  • The 5V DC/DC is tolerant to 60V input because PSU is SELV and could fail up to 60V. If the DC/DC was not tolerant to 60V, then an overvoltage protector would be needed.

  • STO Inputs are overvoltage protected by means of a single STO Inputs Overvoltage Protection (i.e a Voltage Monitor with cut-off capability) who supplies the output switches of an optoisolator.

  • The STO switch is implemented by means of Optoisolators to decouple the drive from the Safety Controller

  • The Safety Controller is also decoupled/isolated from the CAP-CORE non-safety-related nets (communications, feedbacks, etc.), which could carry dangerous voltages

Multiple Drives/Axis connection with a single STO input

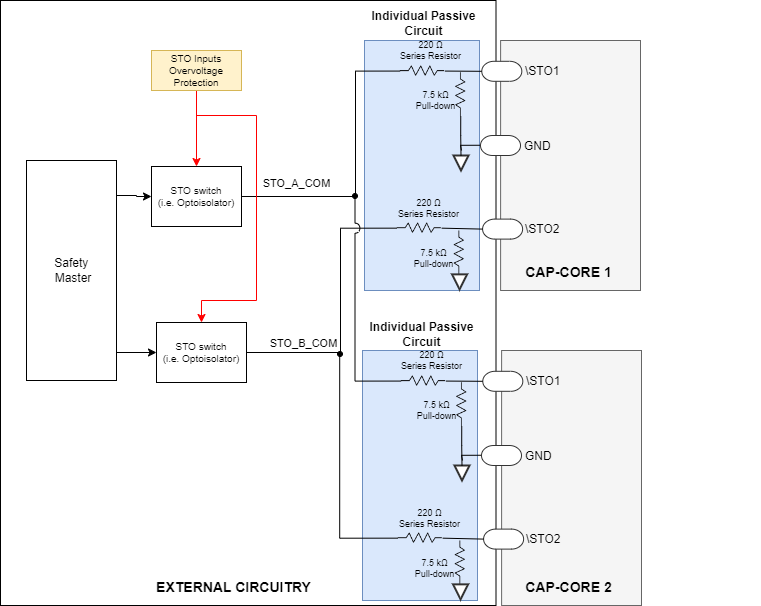

The following diagram summarizes how to connect multiple CAP-CORE with a single STO input. It is important to guarantee the Mandatory External Requirements for each CAP-CORE.

STO Inputs Detailed Interface Circuit

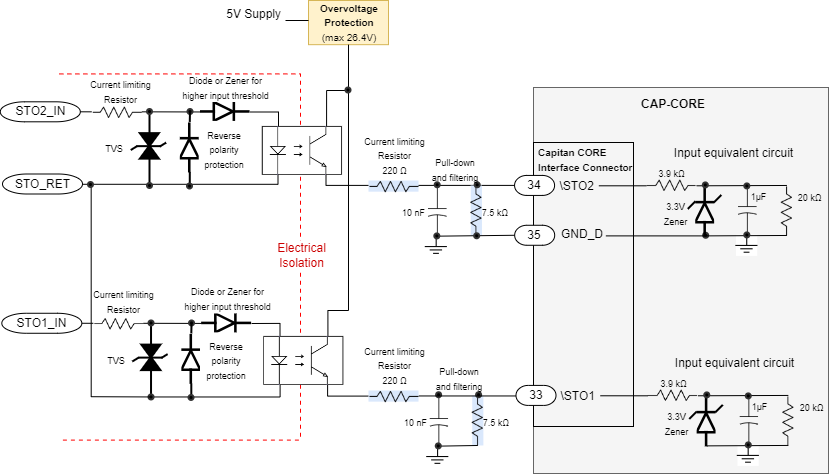

The following diagram shows a suggested circuit for implementing the STO inputs interface.
