Updating Summit CORE device through Commissioning Kit - FTP

This page describes how to update a summit CORE device such as EVE-CORE and CAP-CORE through the commissioning Kit without Motionlab3

Set the commissioning kit in FTP bootloader Mode

Look for the register 0x06DE - Force boot mode and write a 0x424F4F54 ("BOOT" in ASCII).

An external tool with an EtherCAT master is required such as TwinCAT.
The drive will reboot and enter in FTP bootloader.

This FTP bootloader will manage the summit CORE boot sequence automatically

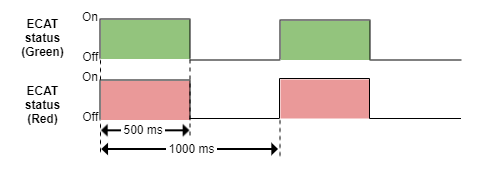

Both on-board status LEDs (green and red) will blink simultaneously at a frequency of 1 Hz once the drive enters FTP bootloader mode.

Follow the next steps to update the device once in FTP bootloader.

Go to the folder where the .mfu file is located.

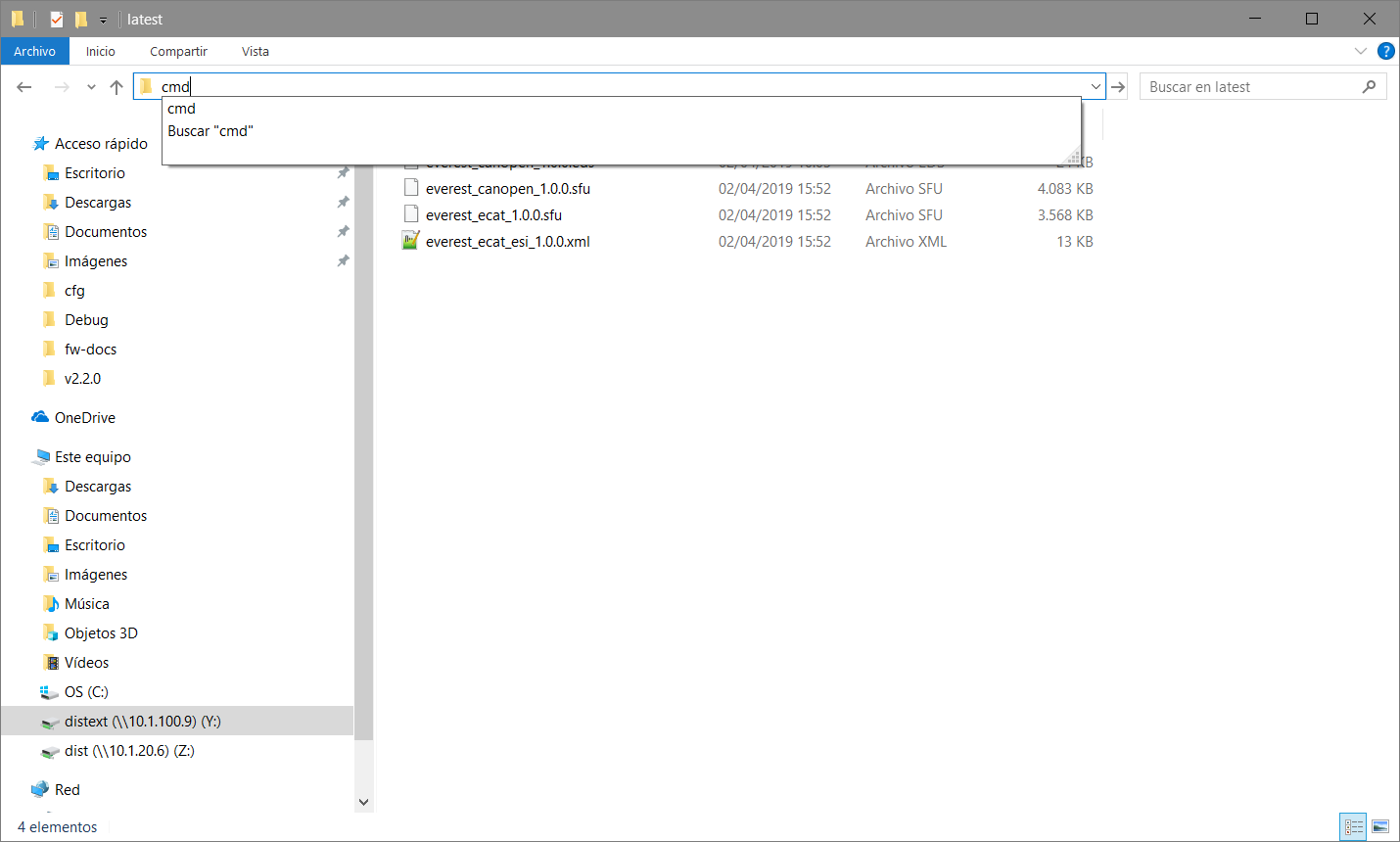

Open cmd terminal on this folder.
Make sure that the ethernet cable is connected.
Make sure that the ethernet network IP is 192.168.2.1 (or in the network 255.255.255.0).

The default IP address of a summit drive in "FTP mode" is 192.168.2.22.

Use the proper network parameters if you are not using the default IP.
Make sure that the firewall is not blocking the connection.

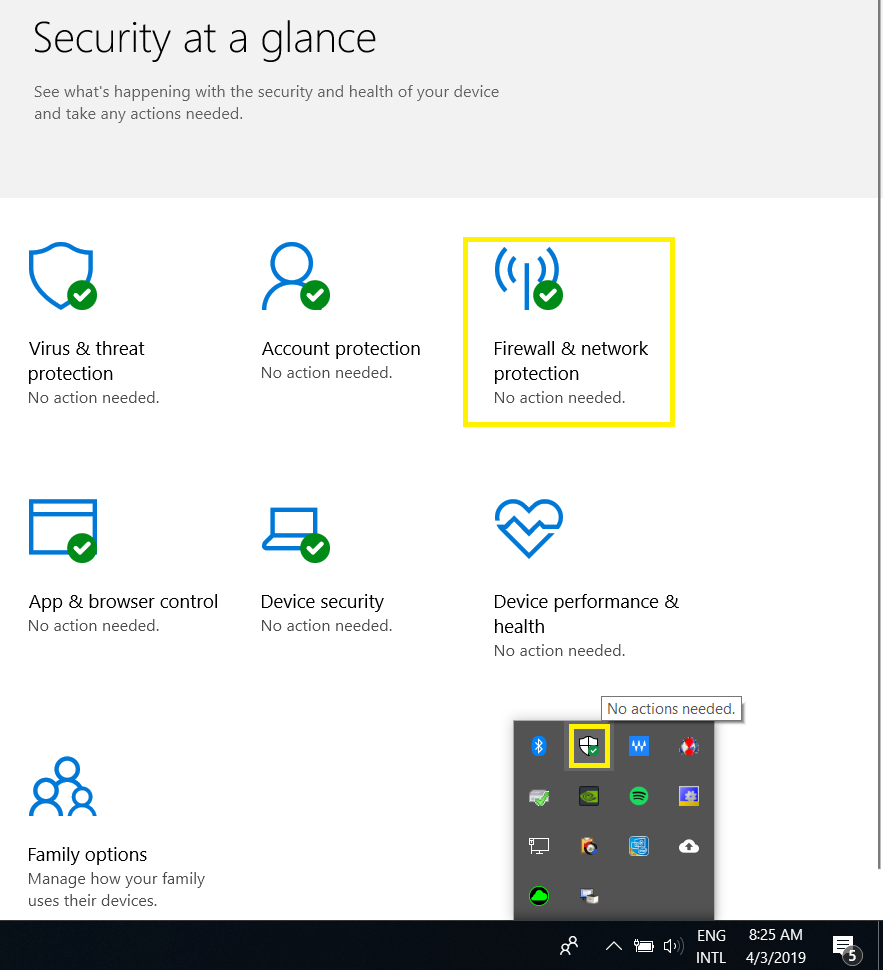

Disabling firewall on windows 10
Write the next command on the cmd:
```
ftp 192.168.2.22
```

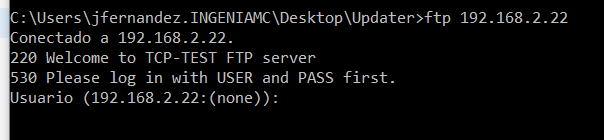

The next message should appear:
For .mfu files -> User: Moco -> Password: Ingenia

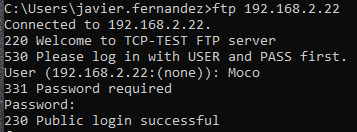

Next message should be seen:
Use the next command to load the file:
```
put file_name.mfu
```
If the transmission starts following messages will be seen:
```
200 Ok
150 Ok
```
If those messages don't appear, it may be needed to disable the network firewall for public networks.
Wait until the transmission finished appears (it can take several seconds):
```
226 File transfer completed
```
Wait until the update is finished (wait until the LED red turns off). This can take more than a minute.
Power cycle the boards
The firmware has been updated.

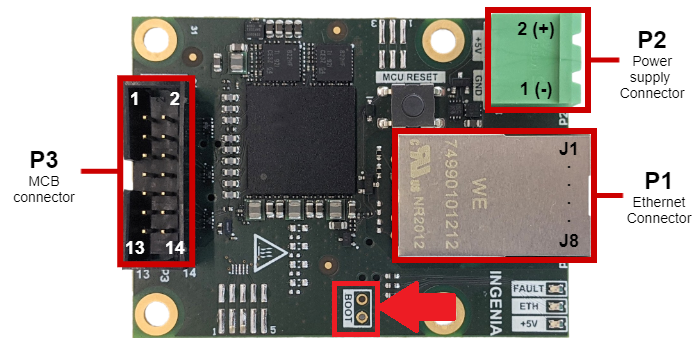

Turn off the system (drive and Com-Kit) and tie both BOOT pins on the Com-Kit to GND. Also tie SYNC1 Pin on the drive to GND.

Power on the system (both the Com-Kit and the drive) and proceed with the standard Summit CORE firmware update procedure via FTP
Power cycle the system again (drive and Com-Kit). The ETH LEDs on the Com-kit should stop blinking indicating a successful firmware install and the drive being in the application state.
