Connecting COM-KIT to a PC


Install INGENIA MotionLab3 software which could be download it from here.

Ethernet configuration

Before starting

This tutorial assumes that you have connected your CORE drive to an external DC power and the Commissioning Kit between your computer and the drive.

In order to use Ethernet connection between the PC and the COM-KIT we need to set the Network Card in the same subnet than the COM-KIT. By default, COM-KIT comes with the IP set to

Please, find below a step by step guide on how to configure the Network Card and how to connect to the driver using MotionLab3.

  1. Open Windows settings and choose network and internet options
  2. Click on "Change adapter options"

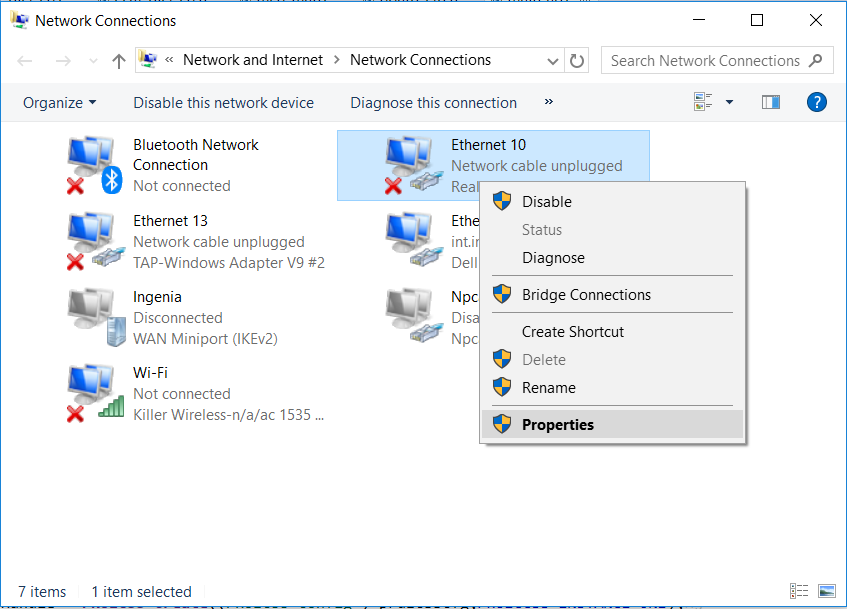

  3. Right-click on the Ethernet connection to the drive

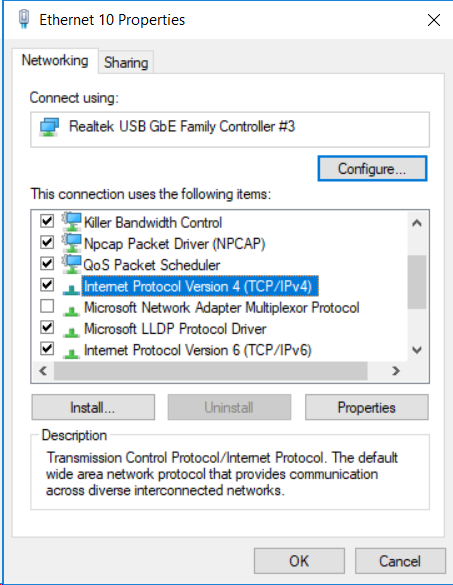

  4. Click on option "Internet protocol version 4 (TCP/IPv4)", and click on the Properties button

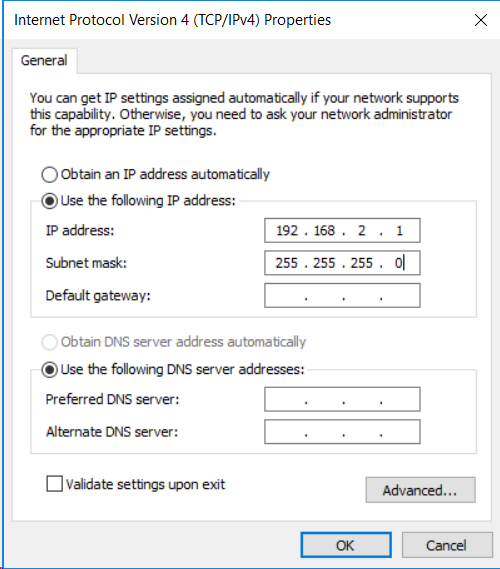

  5. Set IP and network mask to Click "OK"

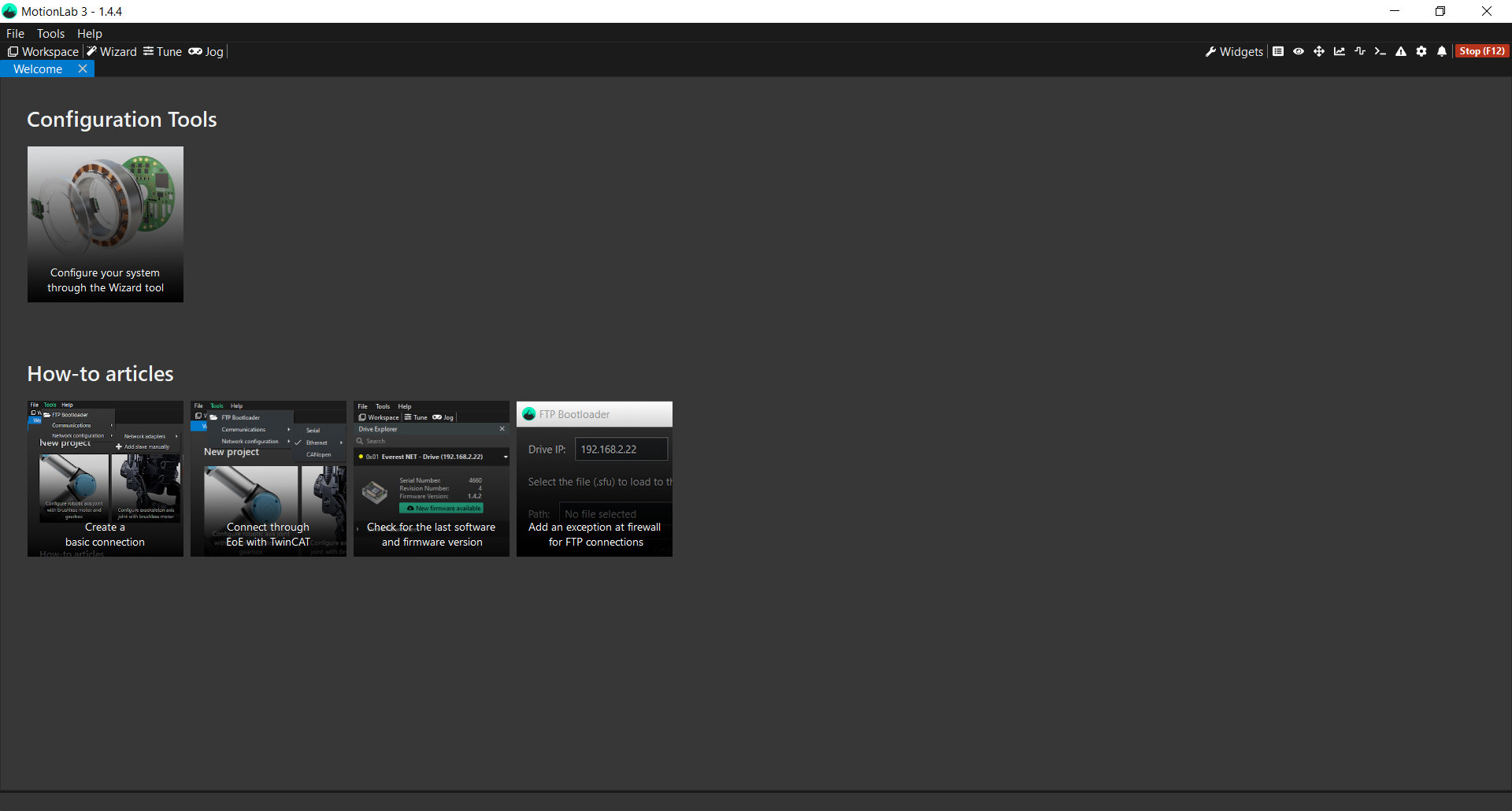

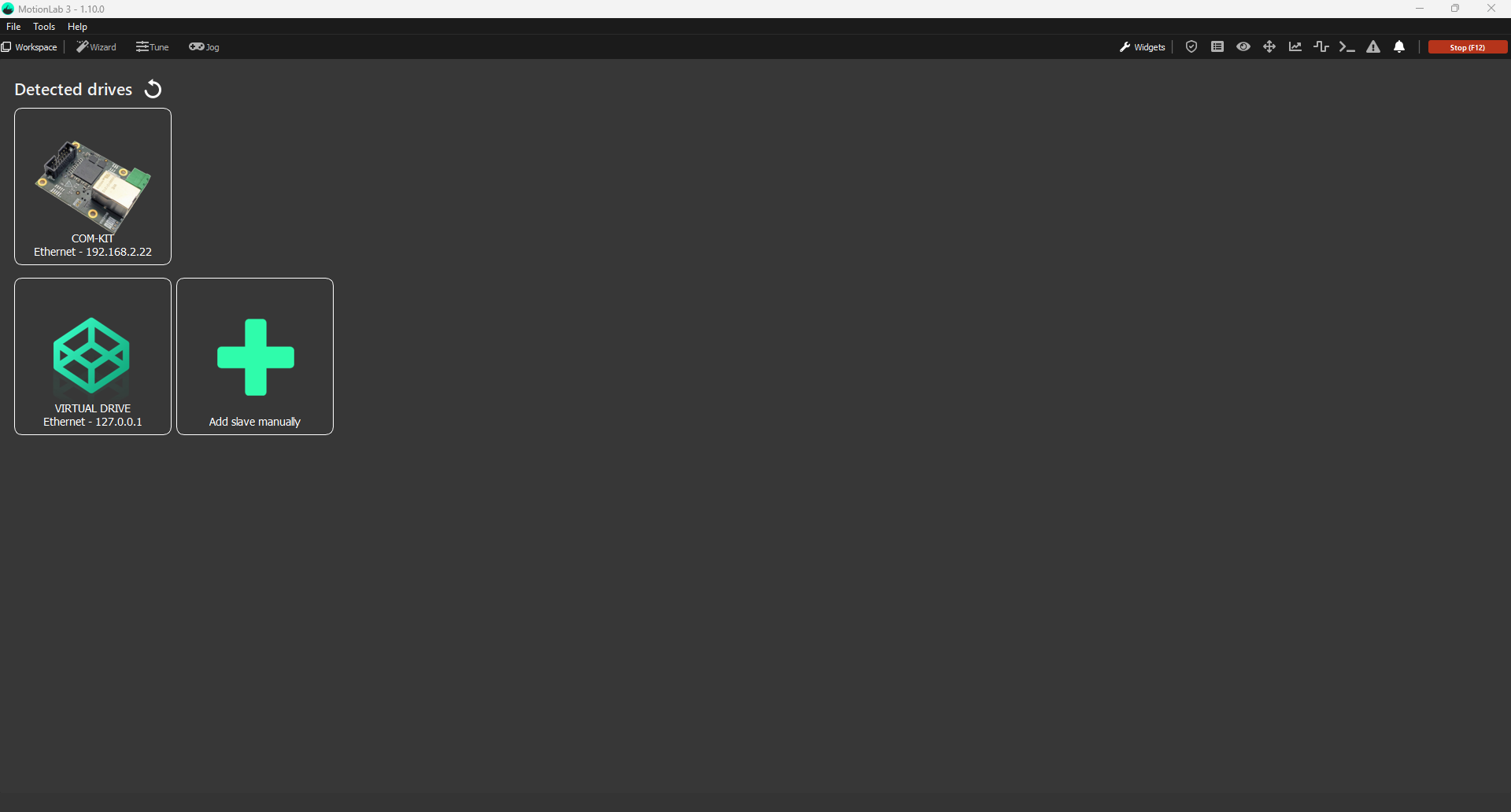

  6. Open MotionLab3.

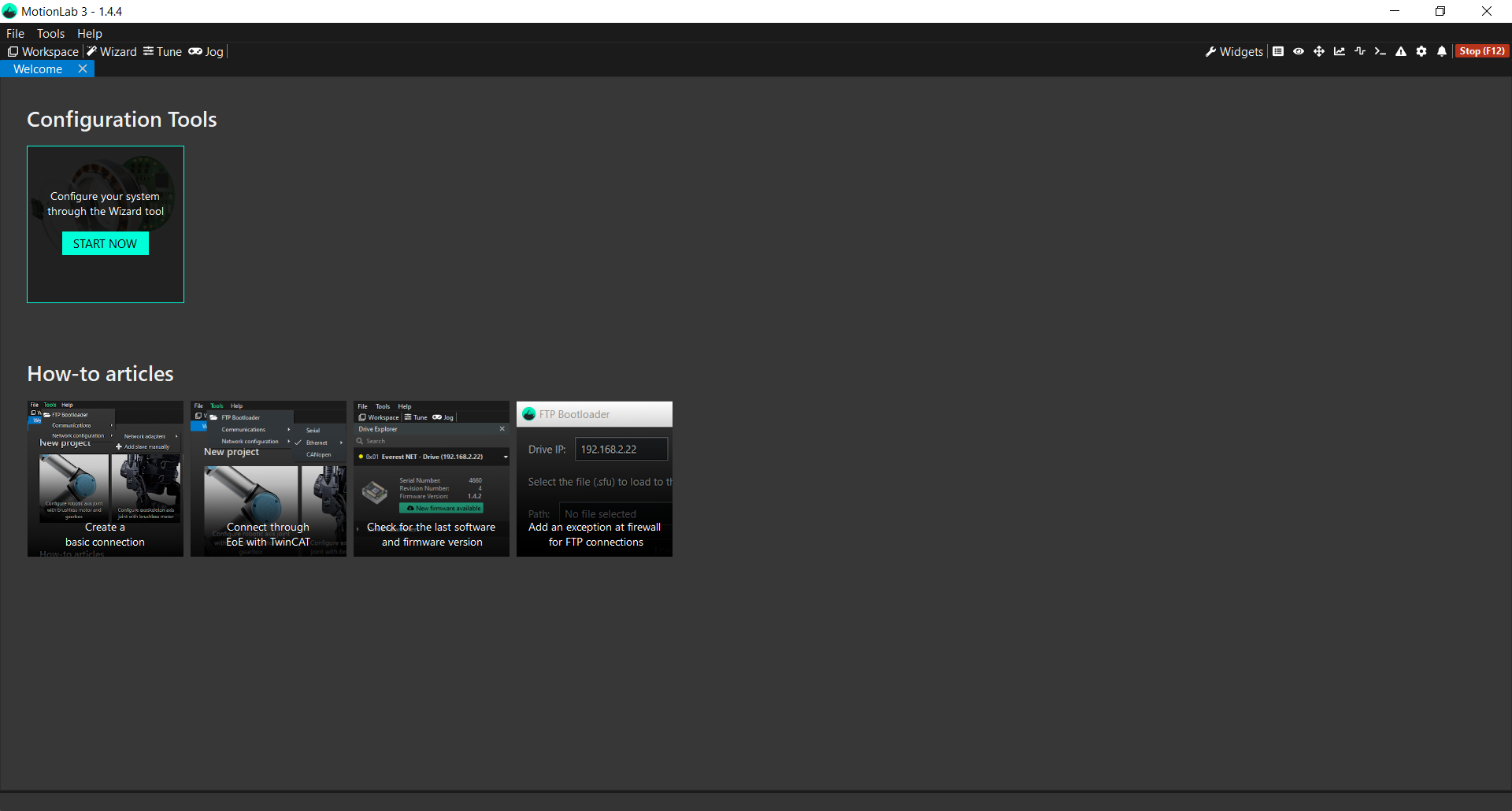

  7. Click on "Configuration Tools" > "Configure your system through the Wizard tool

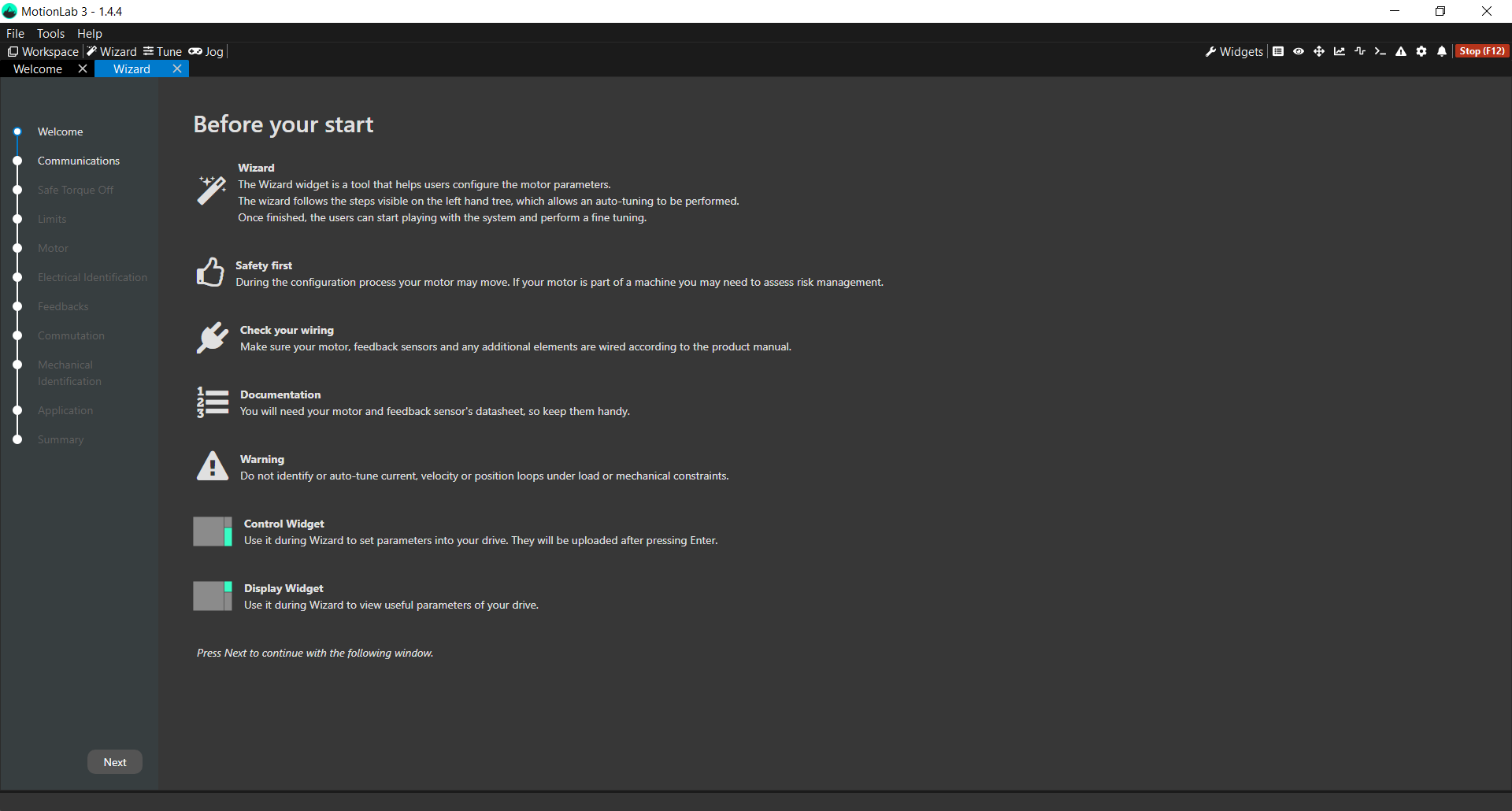

  8. Once the Wizard starts press Next to go to Communication page

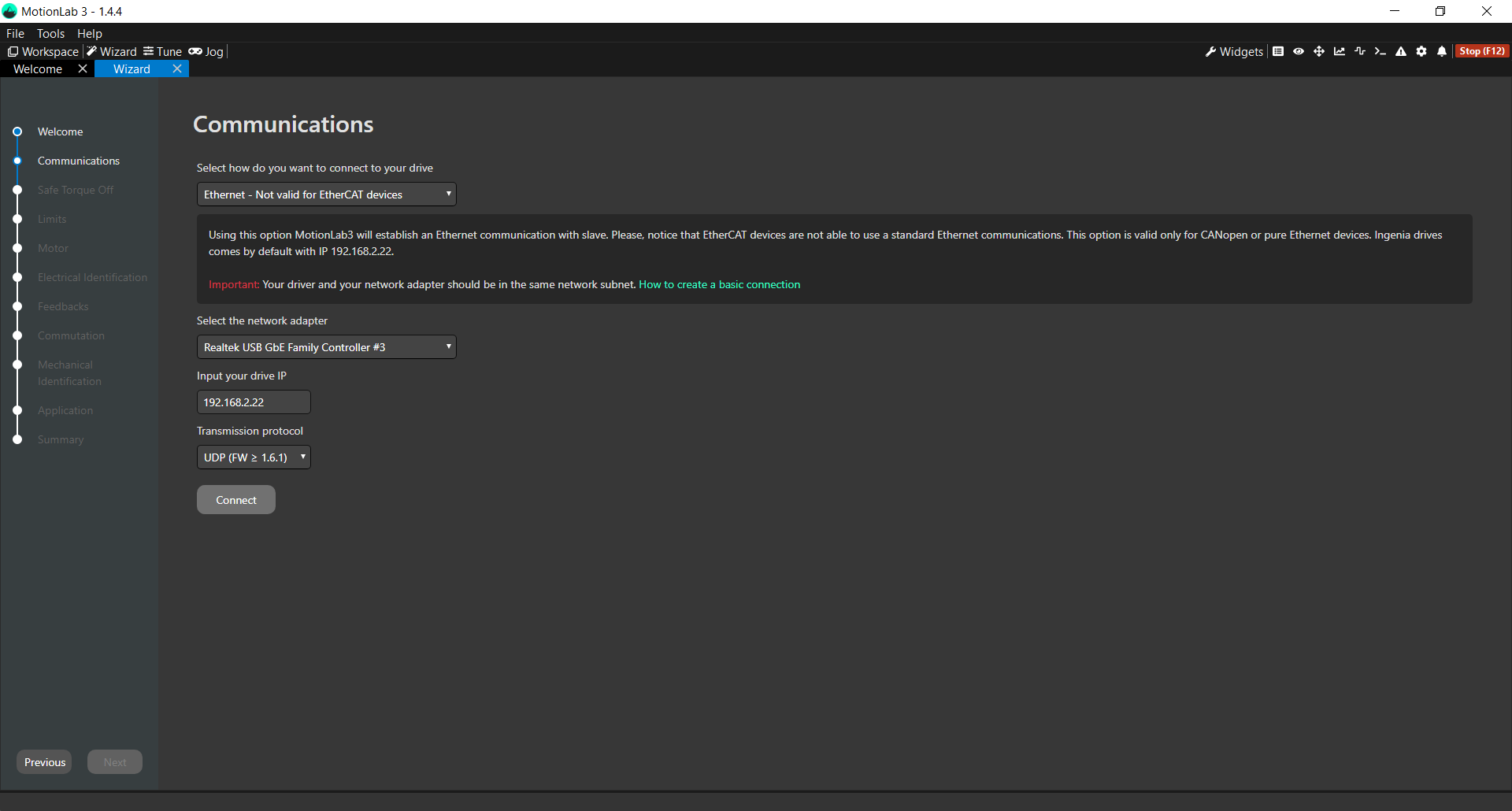

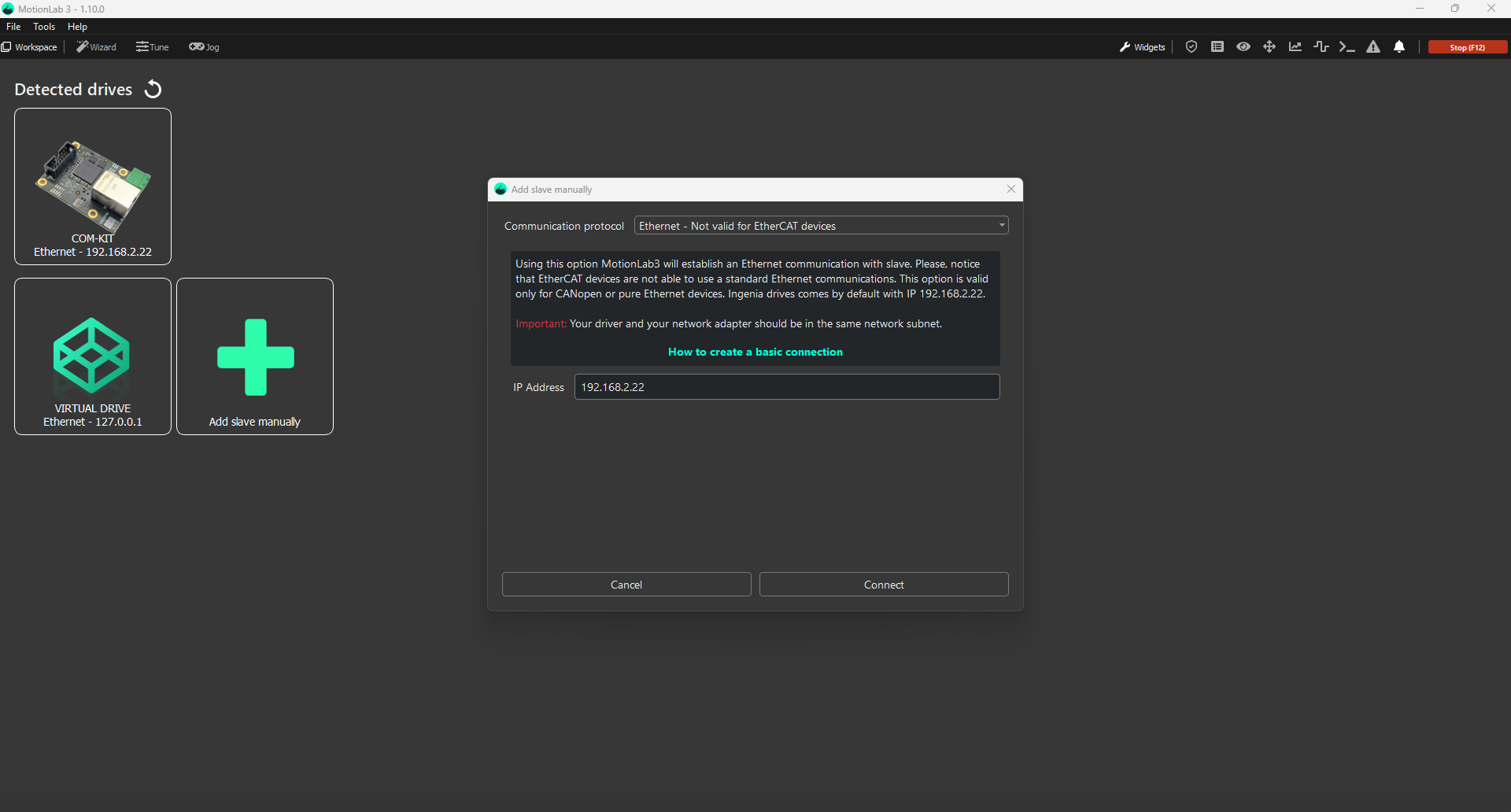

  9. Select "Ethernet" connection, choose the network adapter where the driver is attached, enter the IP and press "Connect".

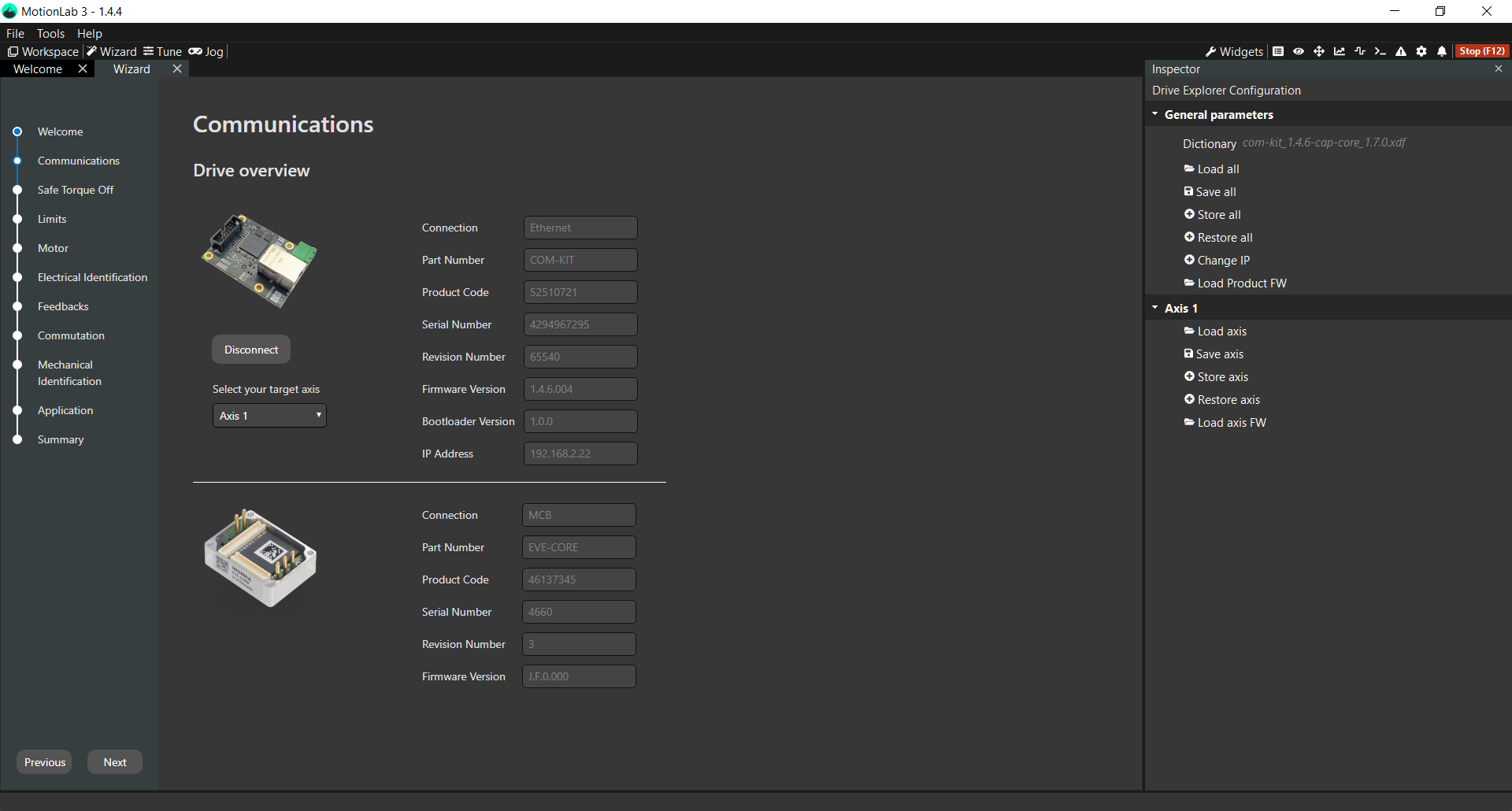

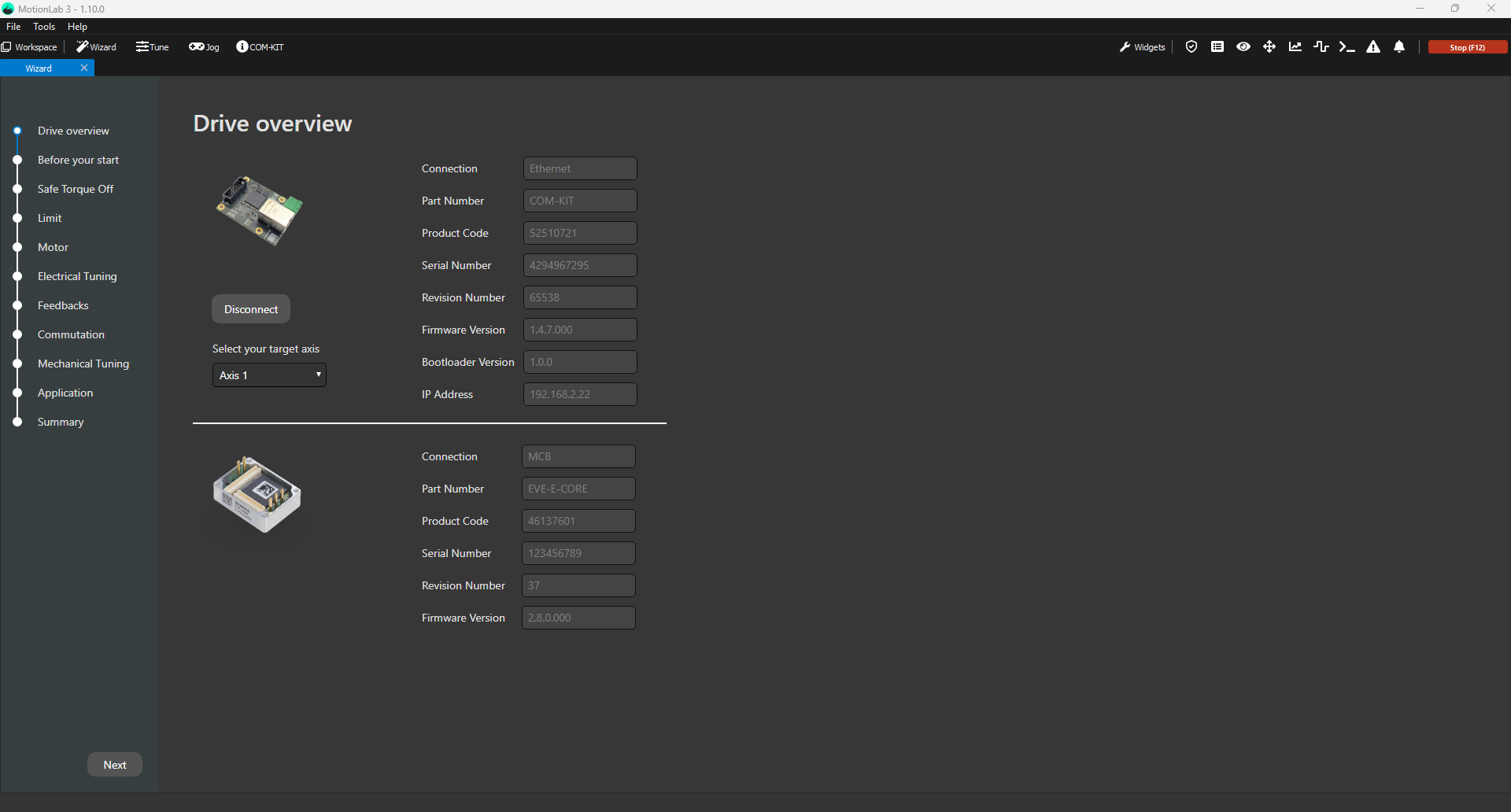

  10. After that, your target Drive description together with the COM-KIT will appear on Drive overview page. You have been successfully connected to your drive!
    The following image shows an example of a COM-KIT connected to an Everest Core driver.

In order to only configure Core driver's parameters use Axis1 information on the right hand toolbar (Driver Explorer Configuration). If complete set-up parameters need to be configured, use general parameters' information.
