CAD files

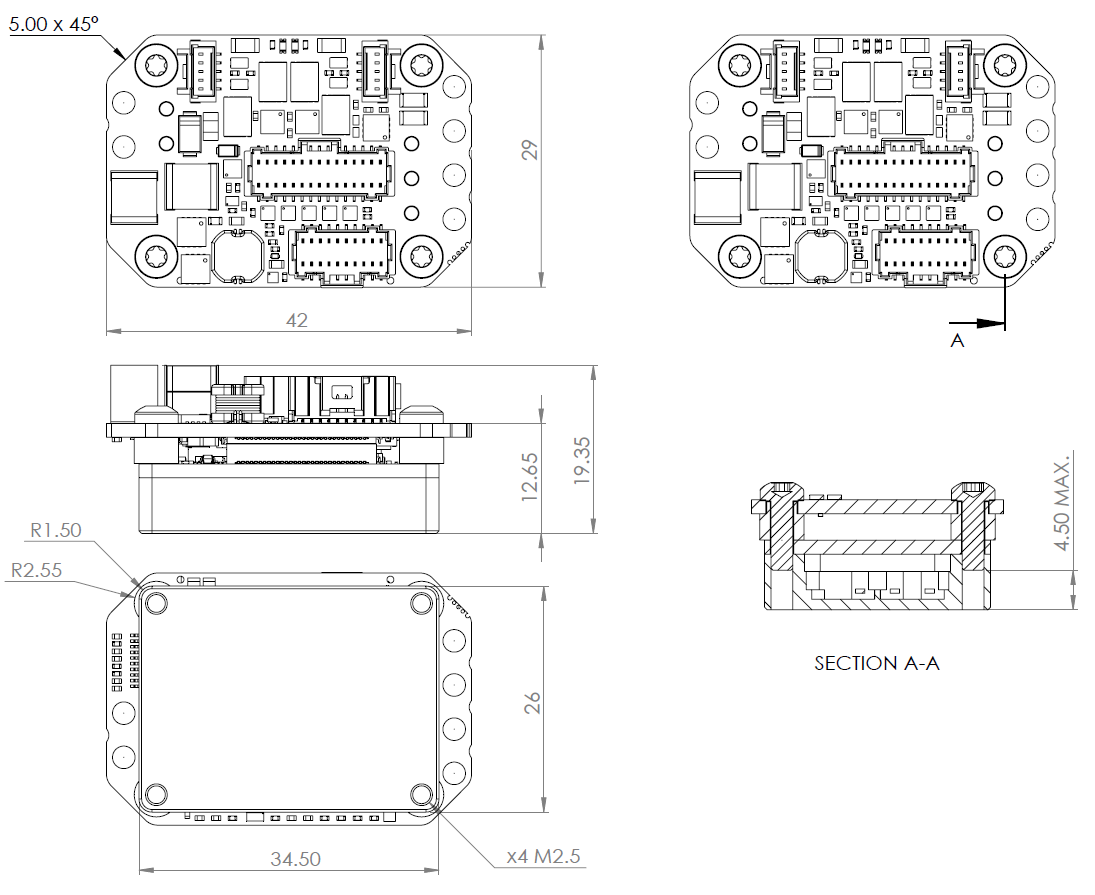

All dimensions are in mm. All tolerances ≤ ±0.2 mm.
Drawings shown below could be downloaded here.
Assembly instructions are indicated in Installation chapter.
![](../__attachments/55116077/image2020-11-10_17-14-43.png?inst-v=4474debf-cd09-41df-8511-2cbe8894ba5d)
All dimensions are in mm. All tolerances ≤ ±0.2 mm.
Drawings shown below could be downloaded here.
Assembly instructions are indicated in Installation chapter.
