Dimensions

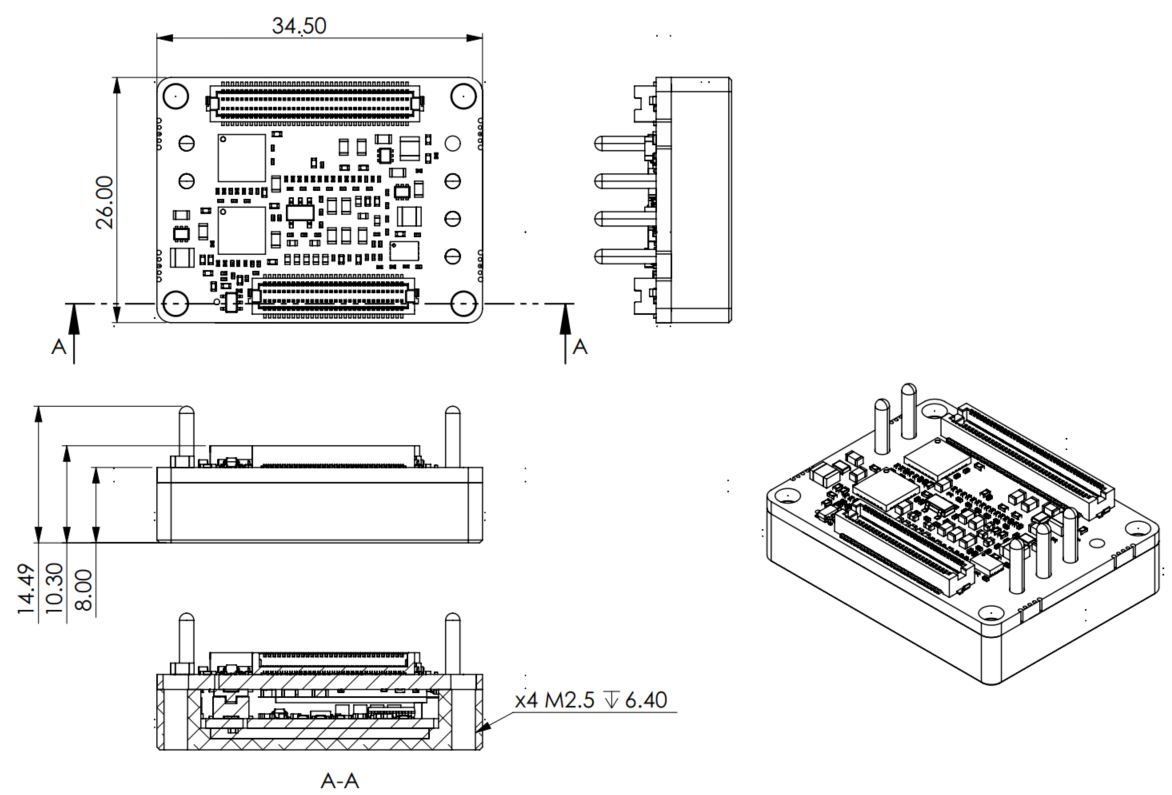

All dimensions are in mm.  All tolerances ≤ ±0.2 mm

3D Model

For further detail, download the STEP model from the Downloadssection.
