0x60F4 - Following error actual value
Index | Sub Index | Name | Data Type | Acc. | Pdo Map. | NVM | Value range | Default value | Units |
|---|---|---|---|---|---|---|---|---|---|
0x60F4 | 0x00 | Following error actual value | INT32 | RO | Yes | No | INT32 | - | increments |

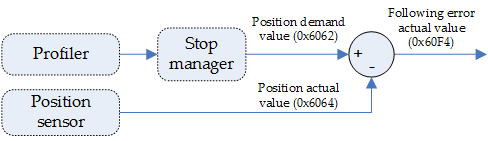

This object provides the actual value of the following error, which is the difference between the position demand and actual position (error = demand – actual).
This is shown in the following figure.
