Registers and I/O handling

Get variable

Function	Properties	Values	Comments
GET	Index	HEX	Check EMCL manual to see the different registers available and their meaning.
	Subindex	HEX

SET VARIABLE

The registers freely available to write data to are called 'General Purpose Registers'. Please check the EMCL documentation for more information on which registers are available (see below).

Function	Properties	Values	Comments
SET	Index	HEX	Check EMCL manual to see the different registers available and their meaning.
Subindex
Operation	Constant Variable Add Subtract Divide Multiply Absolute Complement AND OR XOR Shift Left Shift Right	A variable can be set using a constant value or by operating using different functions with another variable. The different operations will enable additional properties to be set.

Function

Properties

Values

Comments

SET

Index

HEX

Check EMCL manual to see the different registers available and their meaning.

Subindex

Operation

Constant
Variable
Add
Subtract
Divide
Multiply
Absolute
Complement
AND
OR
XOR
Shift Left
Shift Right

A variable can be set using a constant value or by operating using different functions with another variable.

The different operations will enable additional properties to be set.

Example:

This macro reads the current mode of operation (Get) and 'Set' it to profile torque.

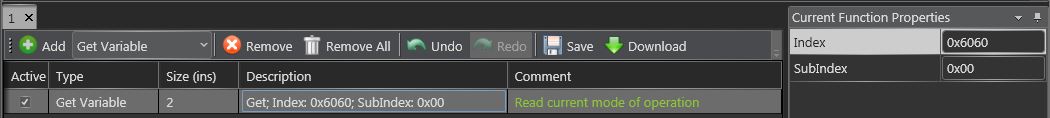

Get variable.JPG

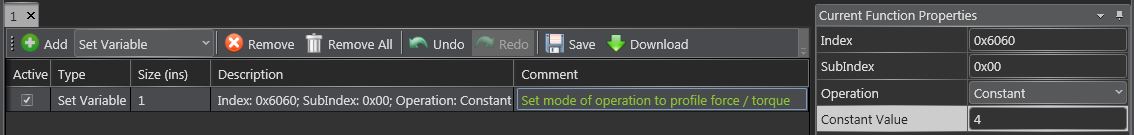

Set variable.JPG

EMCL registers

For more information about the internal registers and their functionality, check the online document EMCL Registers

Set Output

Function	Properties	Values	Comments
SET OUTPUT	Output	Digital Analog	Select output type Number of available I/Os depends on servo drive model
Digital / Analog value	On Off Analog value	Analog value is a constant number

Function

Properties

Values

Comments

SET OUTPUT

Output

Digital
Analog

Select output type

Number of available I/Os depends on servo drive model

Digital / Analog value

On
Off
Analog value

Analog value is a constant number
