After having a proper identification of the system plant, you can configure the control loop.
In this document you will see the most important parts of this wizard, and how to use it.
You have to perform minimum one plant model in the previous step. Otherwise, this step will be disabled.

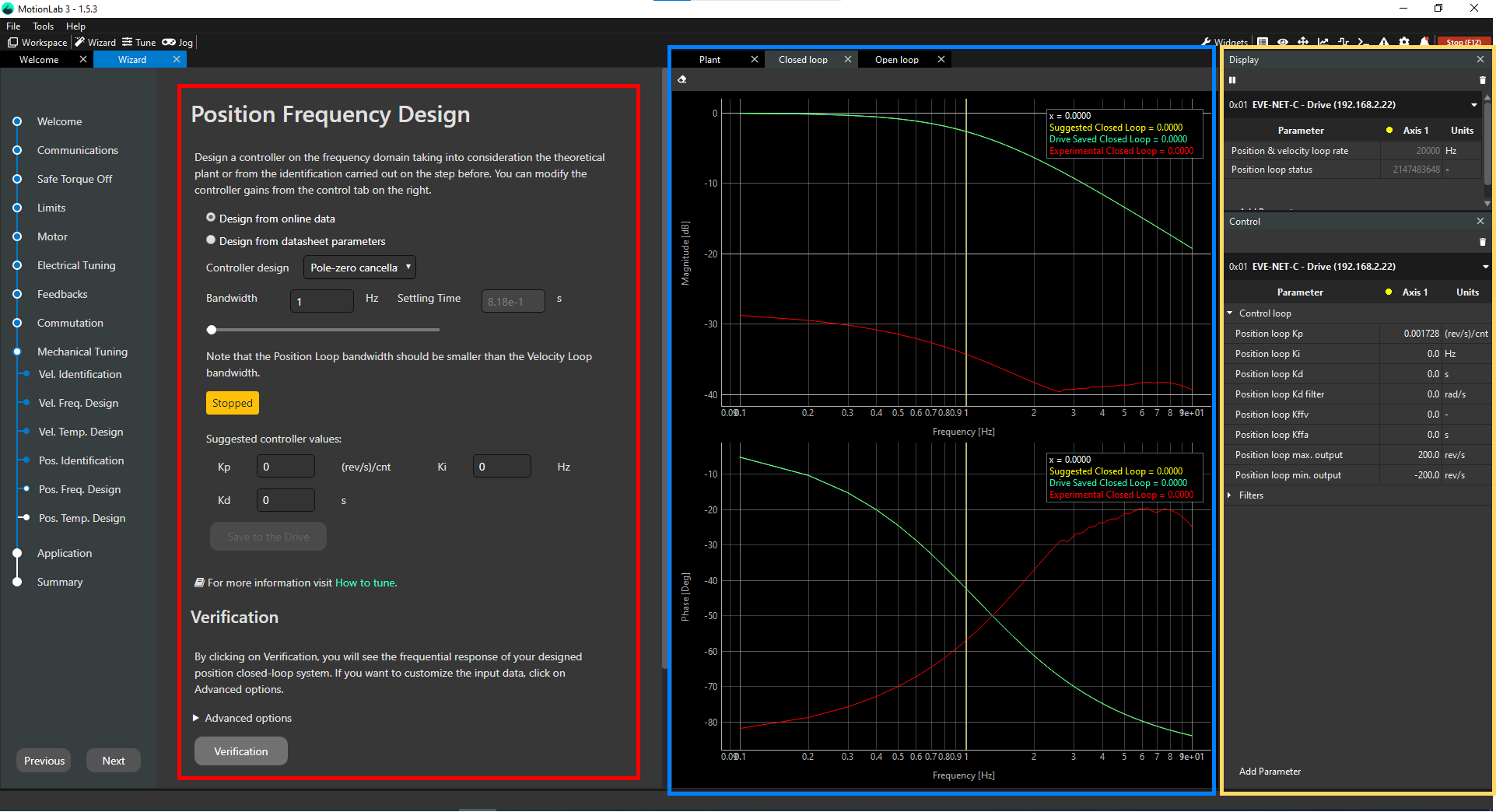

Overview of this page
There are 3 parts:
System configuration and verification (red).
Bode diagrams of magnitude and phase (blue).
Display and Control widgets (yellow).
System Configuration and Verification

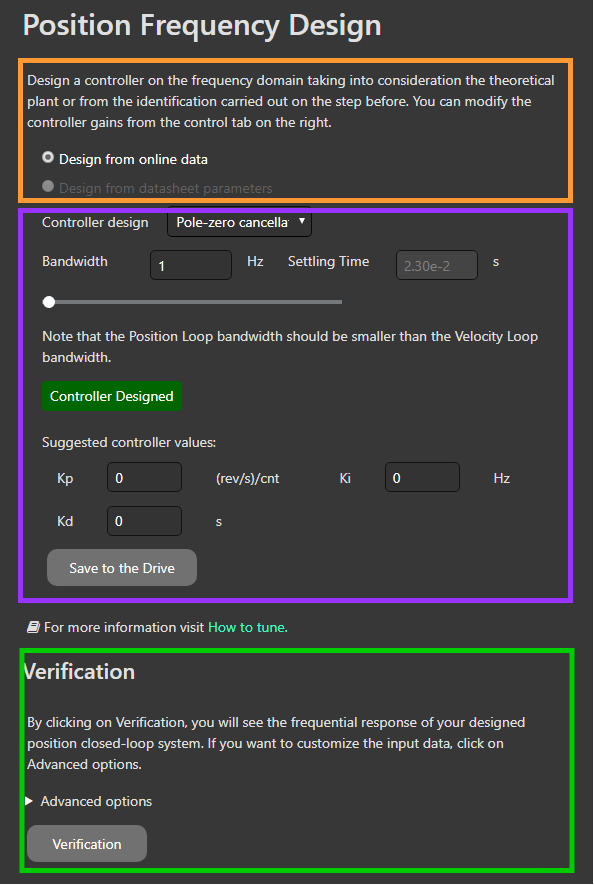

There are 3 main subparts:
Plant model choice (orange).
Control Loop configuration (purple).
System verification (green).
Bode diagrams of magnitude and phase
You have two tabs:
Closed loop (recommended)
Both tabs show the Gain and Phase in frequency domain.
The Closed Loop Transfer Function (CLTF) is the most common way to describe the control system in the frequency domain. The data is taken while the loop is closed, so all of the closed loop dynamics are captured in this transfer function. The gain of the CLTF is very close to unity at low frequency and rolls off at high frequency, with some amplification in between. The phase of the CLTF is near 0 at low frequency and near -180 degrees at high frequency. This curve is typically used to state the system’s “Bandwidth”.

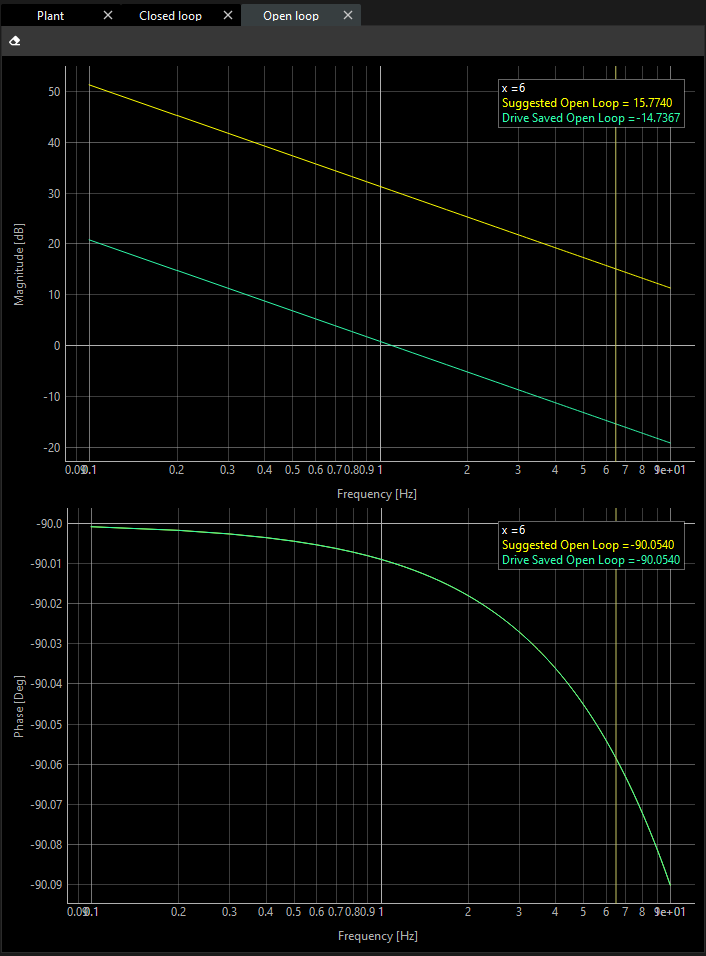

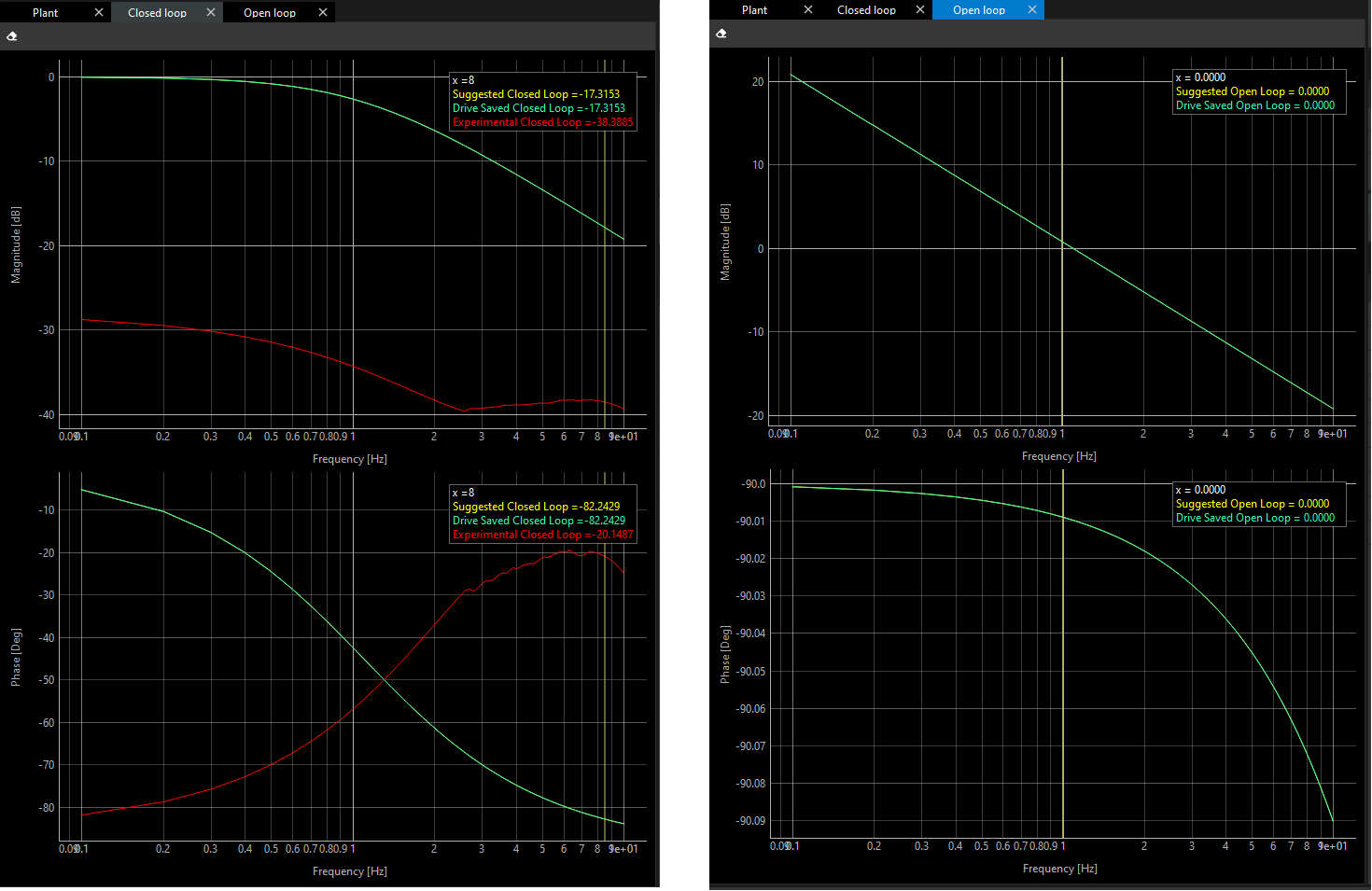

The Open Loop, or “Loop” transfer function (OLTF) is representative of all the frequency dependent blocks that make up of the servo loop, meaning the control, the drive, the plant, and the sensor. The OLTF for some systems can be taken with the servo loop open, but in many cases it must be either derived from the Closed Loop, or taken with the loop closed, and done so using the test point. The OLTF can be found from the Closed Loop using the formula CLTF/(1-CLTF), where CLTF is the complex representation of the closed loop transfer function. The CLTF can be measured by driving the system with random or swept sine at In2 and measuring Out2/In2. The OLTF can be found by driving with In2, but measuring Out2/Out3. The open Loop and closed loop transfer function are shown below.
Plant model choice

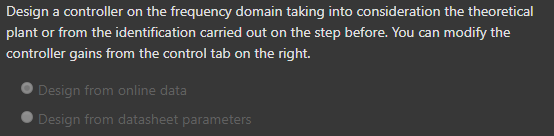

Depending on the identification method used on previous page, Velocity tuning: identification, you should select the model you want to use to design your controller.
If theoretical identification was used, the only option will be design from datasheet.
If experimental identification was used, the only option will be design from estimated model.
If both were used, both options will appear.
The main goal of this step is to adjust the loop parameters: Kp, Ki and Kd. You can get them and simulate their implications for the system without saving in the drive. You will be able to see these simulations in different plots.
Once you consider these parameters works properly, you can save them into the drive. You can see below several examples about how the closed loop behaves with different Kp's , Ki's and Kd's.
In order to do that you have to choose which methodology you want to apply.
There are 3 methods:
Pole-zero cancellation and Pole-placement are automatic methods that calculate the Kp, Ki and Kd. Manual is to adjust the parameters manually and see the frequential response.
If you need more details about these methods and how their parameters affect to your system, click on the link as the image below shows.
You will see the following in this part.

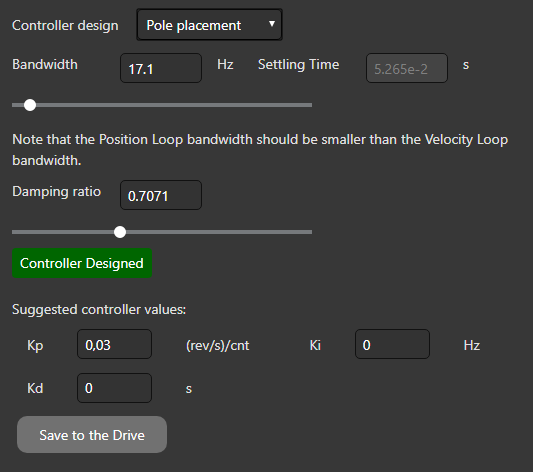

You can adjust Kp, Ki and Kd moving both sliders: Bandwidth and Damping ratio.
If you think you don’t need the Damping parameter, you can use this method using only the Bandwidth parameter.

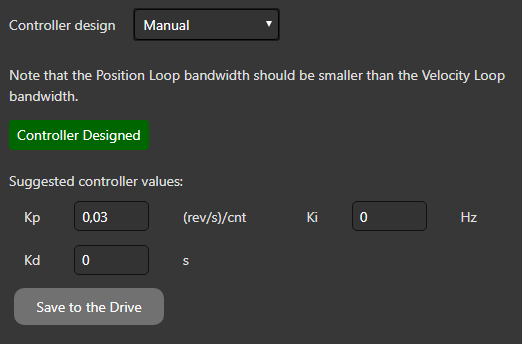

Here, you can modify Kp, Ki and Kd directly without any without adding a calculation based on the desired bandwidth and damping.
In the case of Pole-zero cancellation.

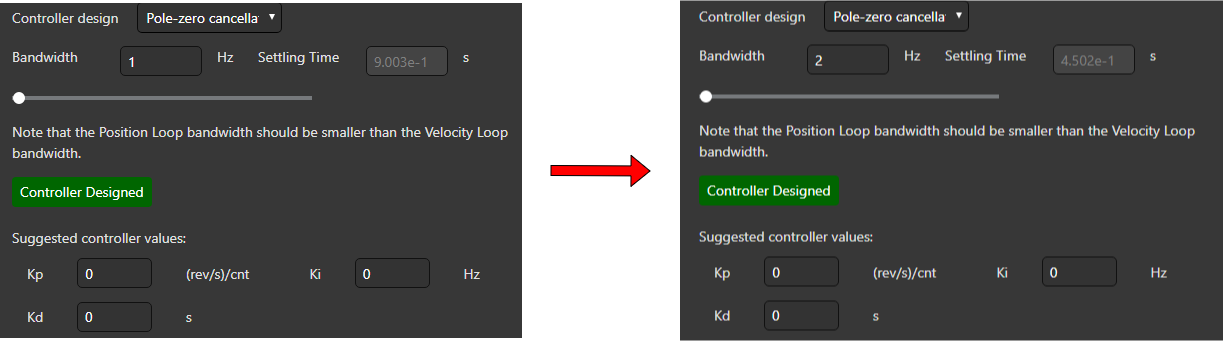

If you move the Bandwidth slider or directly you edit the its value directly, Kp, Ki and Kd parameters will be modified automatically.
The label under the slider indicates the stability of the system

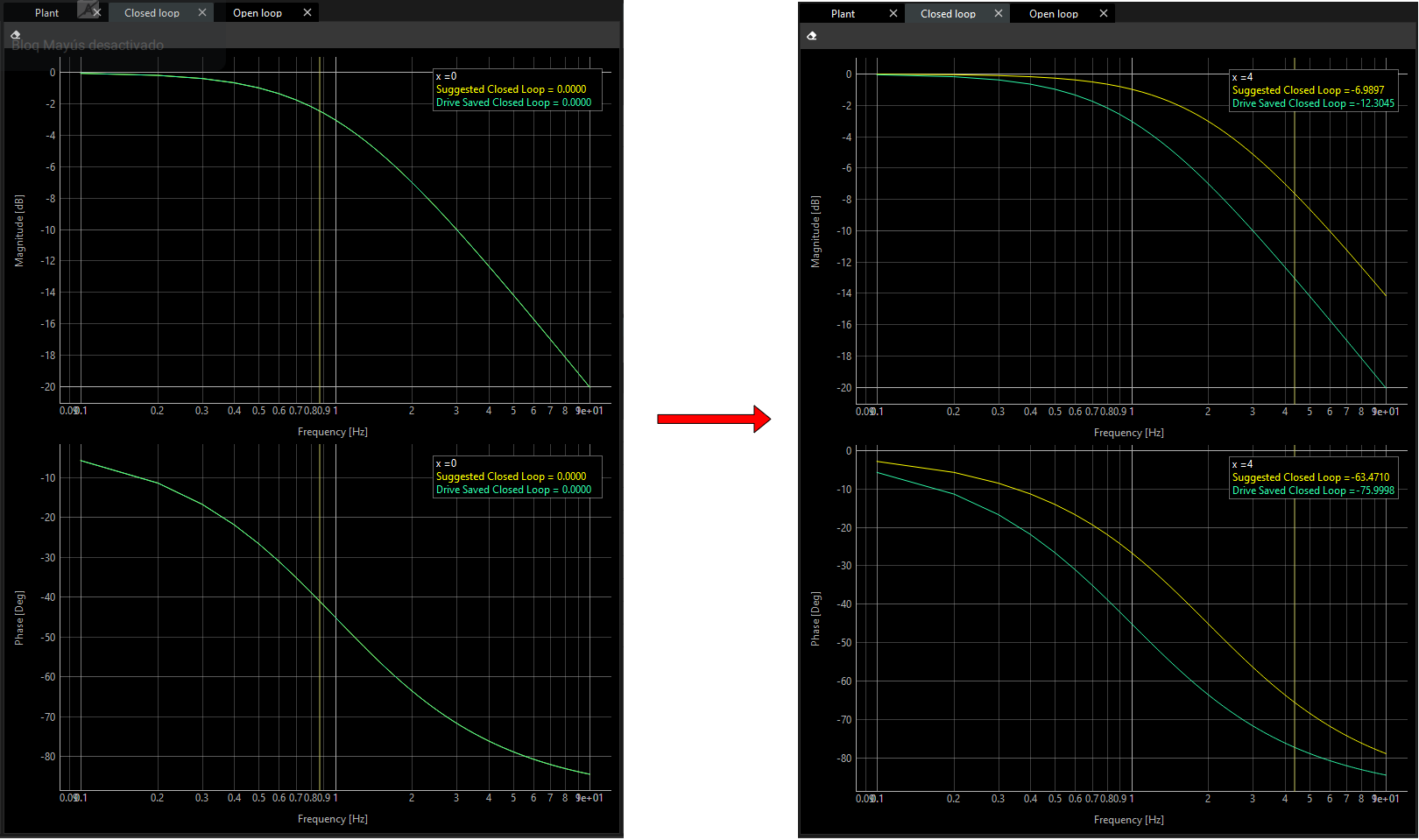

Check the frequential response of your system and adjust the slider until the expected result is obtained. Also, you can compare the response of the controller values saved on the drive against the suggested new ones.
In the page How to tune inside MotionLab3, you can see some more information, if you don’t know how to analyze the different plots.

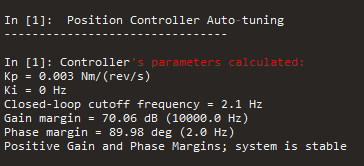

You have further information as well in the Terminal:
However, these loop parameters won’t be saved into your drive. You have to click on the button “Save to the Drive”.
In order to check if they are properly saved, you can see:

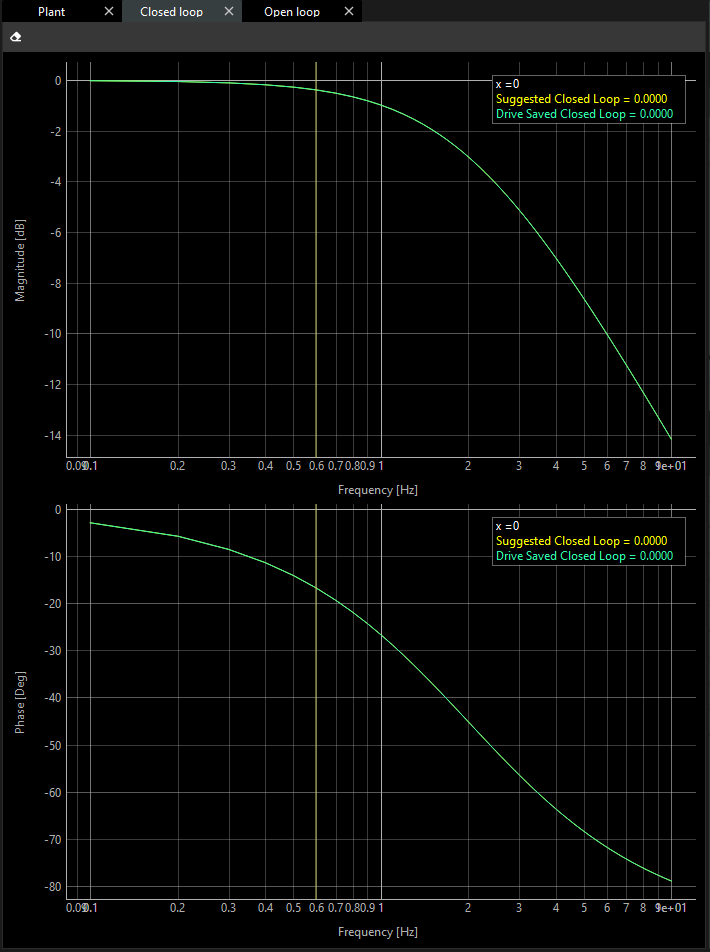

Drive Saved Closed Loop plots change their shape like Suggested Closed Loop.
To compute a verification of your system, just click on the “Verification” button.
In this step, the main goal is checking how your actual system works with the current controller saved on the drive.
Let’s continue the example before.
In order to make a verification, you can follow the steps below:

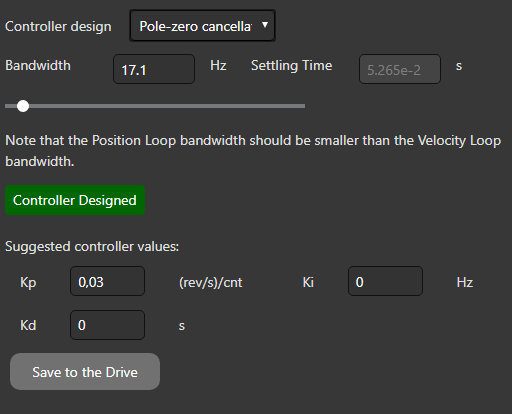

Modify the bandwidth value.
Click on the “Save to the Drive” button.
And click on the “Verification” button.
Finally we get a message below that tells us.

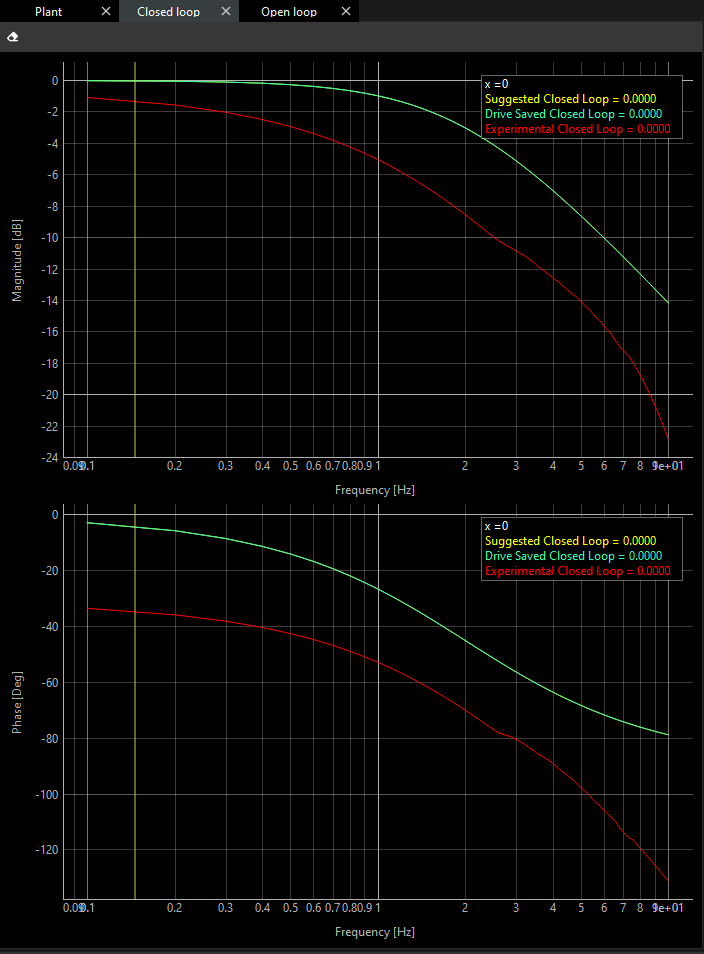

Charts are updated as well.
The terminal shows the quality (correlation factor) of the verification. This correlation factor compares the simulate results with the experimental ones.

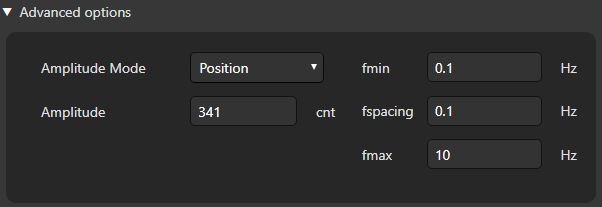

Finally, some very specific applications, might require changing the excitation parameters. This can be done through the Advanced Options.
These parameters are:
Amplitude Mode: The only option is Position.
Amplitude: The maximum counts of the motor you want.
fmin: The minimum frequency that the plant is made.
fspacing: The resolution of the frequency.
fmax: The maximum frequency.
Finally, the simulation results are represented in closed-loop and open-loop.
In these charts there are no Experimental Closed Loop plots, just the estimated ones.

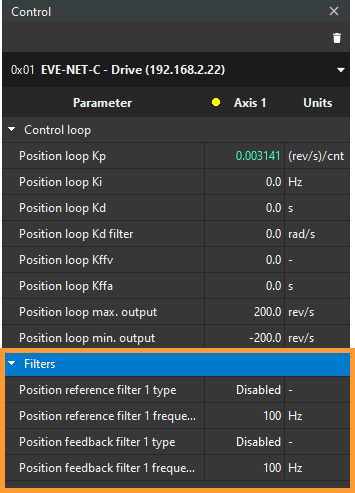

Finally, you can use two filters per signal for your system:
Two for the position reference
Two for the position feedback
You can available/disable at Control widget.
