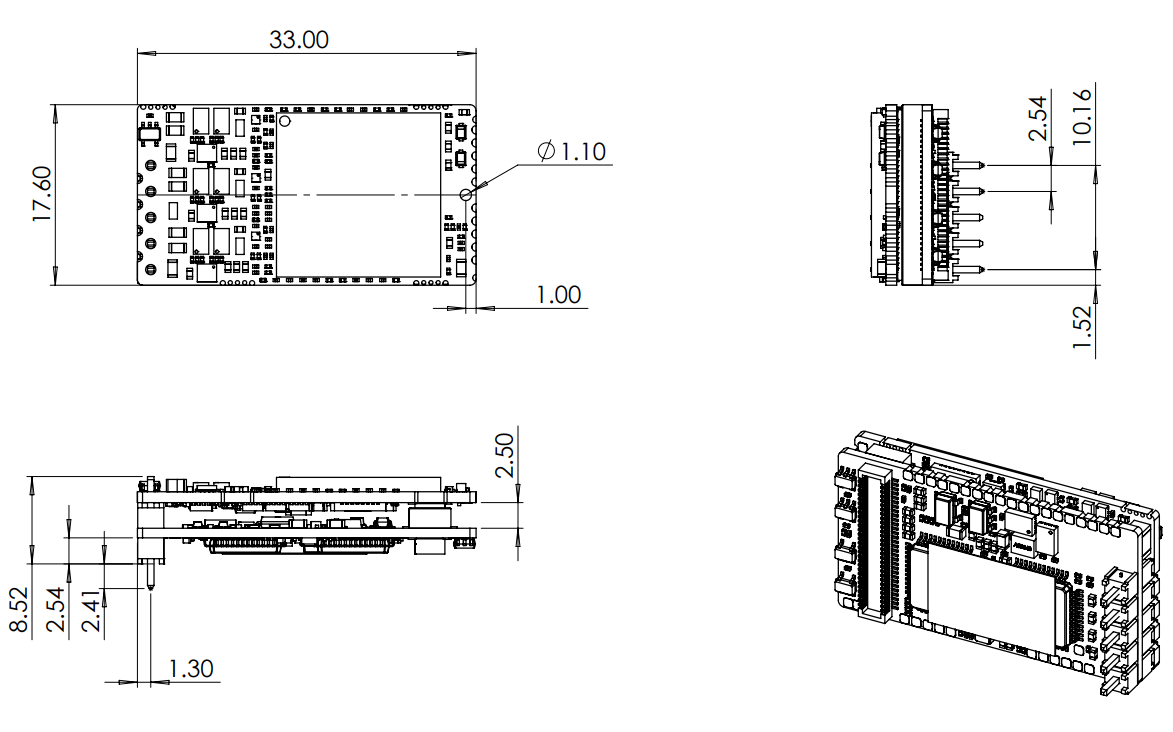

Dimensions

All dimensions are in mm.  All tolerances ≤ ±0.2 mm

Drawings shown below could be downloaded here.

Assembly instructions are indicated in Installation chapter.

3D Model

For further detail, download the STEP model.
