Dimensions

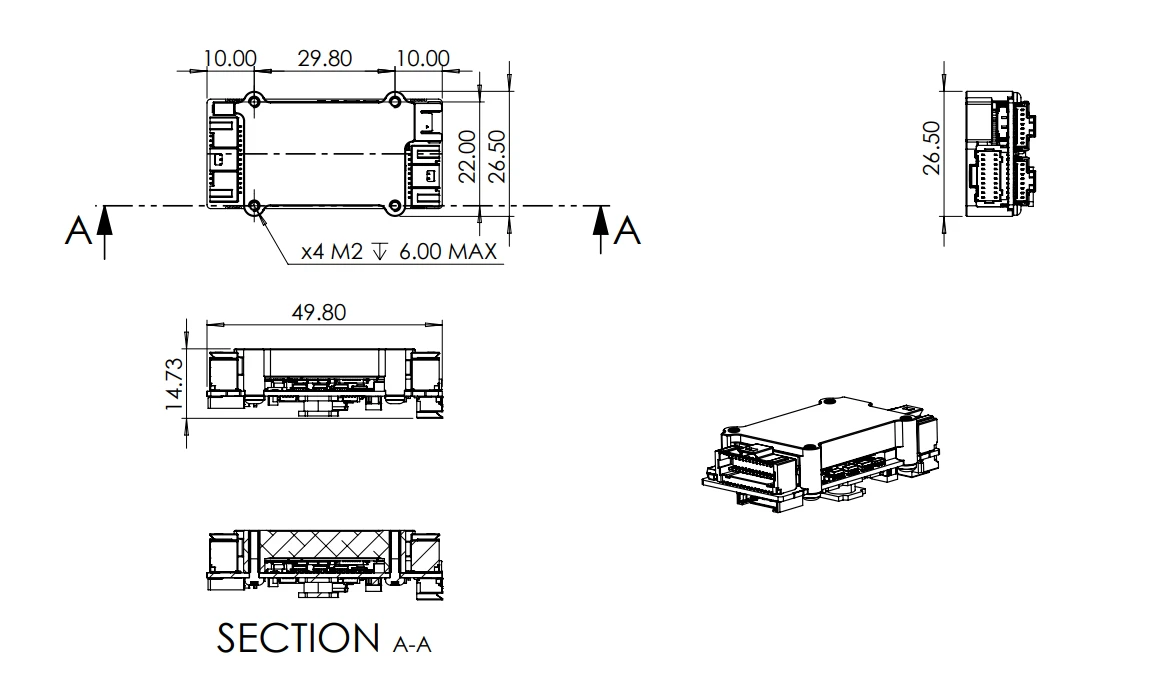

All dimensions are in mm. All tolerances ≤ ±0.2 mm.
Assembly instructions are indicated in the Installation chapter.
3D Model
For further detail, download the STEP model.
![](../__attachments/103187965/image-20231110-125213.png?inst-v=0ad17533-19ba-41bb-8f30-41aae97648ea)
All dimensions are in mm. All tolerances ≤ ±0.2 mm.
Assembly instructions are indicated in the Installation chapter.
For further detail, download the STEP model.
