Product Description

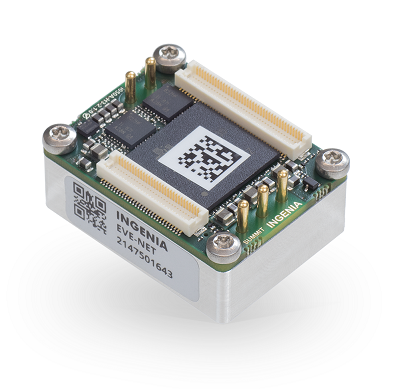

Everest NET

Pluggable servo drive with EtherCAT communications

Everest NET

Pluggable servo drive with CANopen and Ethernet communication.

80 V_DC (continuous)

85 V_DC (peak 100 ms)

_{Working at 80 V will require a stable power supply able to absorb any possible reinjection coming back from the driver.}

52 V_DC (continuous)

12 V_DC ~ 72 V_DC

_{This voltage range ensures a safety margin including power supply tolerances and regulation during acceleration and braking.}

12 V_DC ~ 52 V_DC

19 µF

_{Note that EVE-NET uses ceramic capacitors. The capacitance value varies with DC bias and temperature.}

4.9 V_DC ~ 5.1 V_{DC  Recommended voltage range is 5 V ± 2%}

_{Maximum absolute operating voltage range is 5 V ± 3% (4.85 V to 5.15 V)}

_{A minimum of 500 mA should be provided. Higher current may be needed depending on the feedbacks used.}

_{Rise time of the 5 V supply must be between 2 ms and 10 ms to guarantee a proper initialization.}

45 A @ 60 ºC

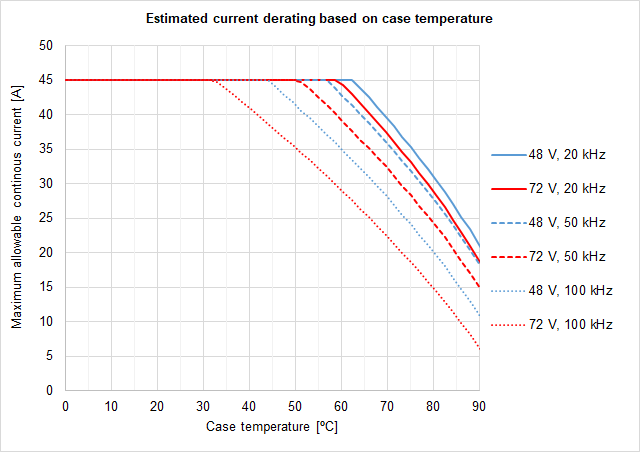

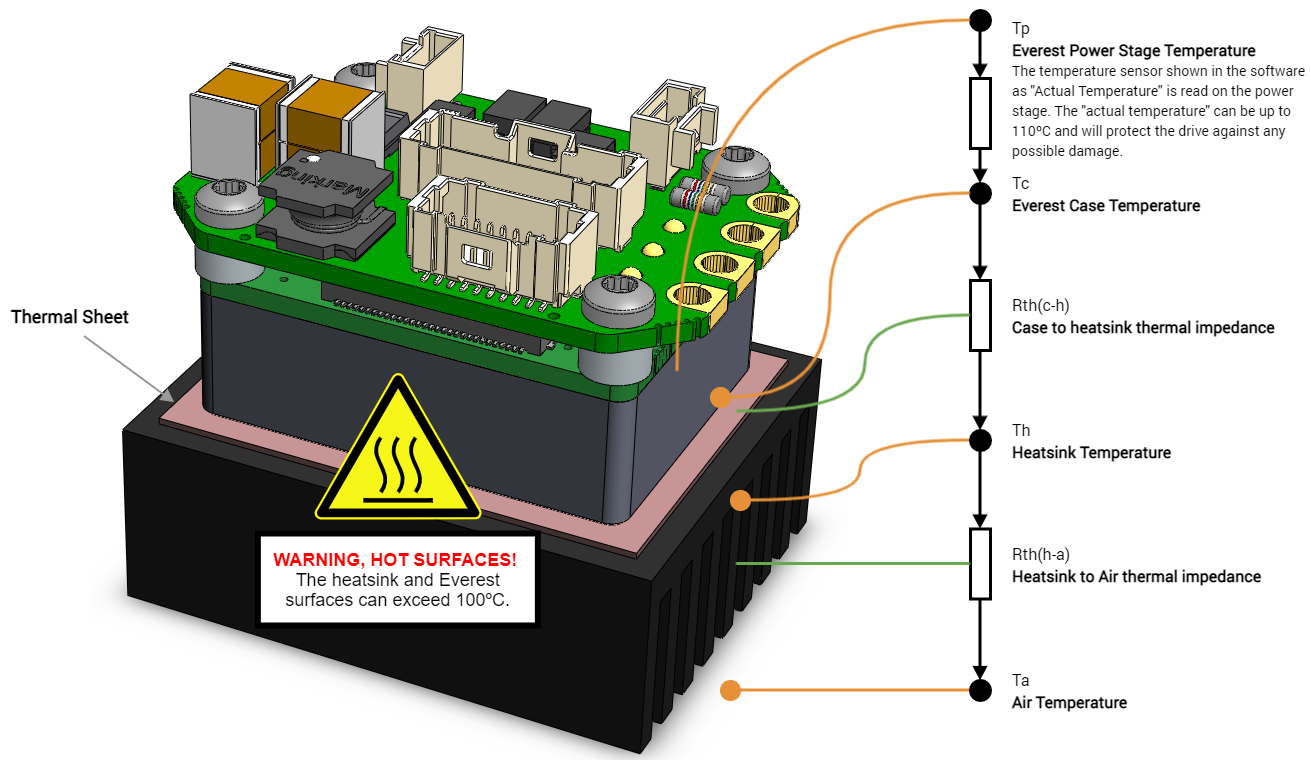

_{Typically, 45 A can be obtained working at 48 V, 20 kHz with an appropriate cooling to keep case temperature under 60 ºC. On higher temperatures an automatic current derating will be applied to protect the system. See Thermal and Power Specifications below.
For disambiguation on current definitions please see Disambiguation on current values and naming for Ingenia Drives.}

60 A @ 1 sec

_{Notice that peak current could be limited by an automatic current derating algorithm. In order to get 60 A, case temperature should be kept below 35 ºC.}

• Without heatsink: 4 A @ 25 ºC
• With heatsink: 3.5 A @ 85 ºC

_{Notice that maximum current is dependent on temperature and heatsink attached. At higher temperature, the lower the current. For more information about heatsink applied, see Thermal and Power Specifications below.}

_{A continuous use of disabled power stage as rectifier is not recommended for thermal limitations.}

_{How the output power is calculated in an Ingenia drive.}

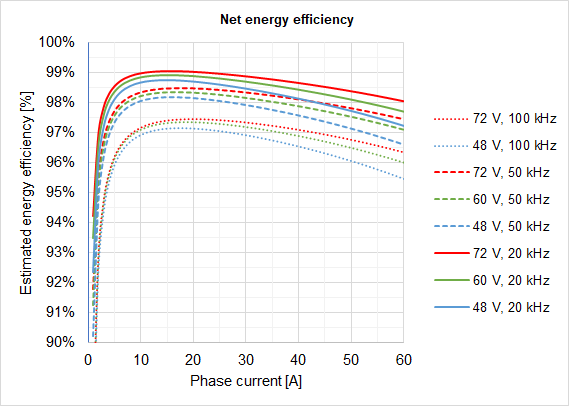

Up to 99%

99.73% @ 10 kHz

99.55% @ 20 kHz

99.04% @ 50 kHz

95.25% @ 100 kHz

_{Note 1: these values assume a Sinusoidal commutation and no load connected.}

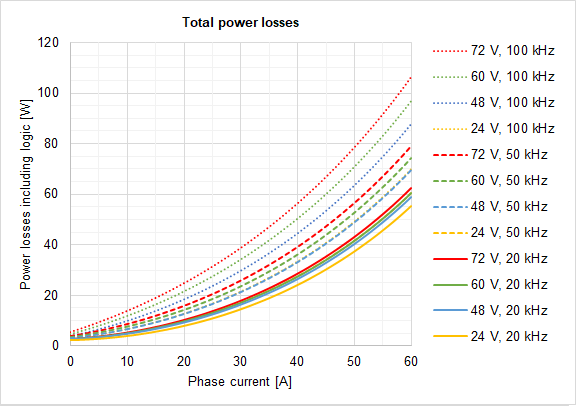

≤ 2.2 W typ.

_{See details and conditions in the section below. The measurement includes 150 mW corresponding to the Ethernet magnetics, not included in the Everest NET.}

• Rotary brushless (SVPWM and Trapezoidal)
• Rotary brushed (DC)

10 kHz, 20 kHz (default), 50 kHz & 100 kHz

3 phase, shunt-based current sensing. 16 bit ADC resolution. Accuracy is ±2% full scale

Current gain is configurable in 4 ranges:

• 2.475 mA/count
• 1.352 mA/count
• 0.570 mA/count

Current ranges for the 4 configurable current gains:

• ±81.1 A
• ±44.3 A
• ±18.7 A

50 kHz

_{Check the Power Stage & Control loops relationship section below.}

25 kHz

_{Check the Power Stage & Control loops relationship section below.}

• Digital Halls
• Quadrature / Incremental encoder: Up to 2 at the same time.
• Absolute Encoder: up to 2 at the same time, combining any of the following:
  • BiSS-C (up to 2 in daisy chain topology)
  • SSI

All feedback inputs are single-ended, 3.3 V logic levels.

_{*Not all the existing absolute encoders are supported. Contact Ingenia for further information.}

• Cyclic Synchronous Position
• Cyclic Synchronous Velocity
• Cyclic Synchronous Current
• Profile Position (trapezoidal & s-curves)
• Profile Velocity
• Interpolated Position (P, PT, PVT)
• Homing

4x non-isolated single-ended digital inputs - 3.3 V logic level. Can be configured as:

• General purpose
• Positive or negative homing switch
• Positive or negative limit switch
• Quick stop input
• Halt input

4x non-isolated single-ended digital outputs - 3.3 V logic level, 3 mA max. sink / source current. Can be configured as:

• General purpose
• Operation enabled event flag
• External shunt braking resistor driving signal
• Health flag

2x ±3.3 V ,16-bit, differential analog input for load cells or torque sensors. Can be read by the Master to close a torque loop.

Configurable over any of the digital outputs (see above).

_{Enabling this function would require an external transistor or power driver.
The update rate of this output is synchronous to the servo loops frequency.}

Dedicated, PWM-capable, 3.3 V digital output for driving a mechanical brake. Turn-on and turn-off times are configurable.

_{Enabling this function would require an external transistor or power driver.}

1x dedicated, 5 V, 12-bit, single-ended analog input for measuring motor temperature.

NTC, PTC, RTD, linear voltage sensors , silicon-based sensors and thermal switches are supported.

CANopen over EtherCAT (CoE)

File over EtherCAT (FoE)

Ethernet over EtherCAT (EoE)

CiA-301, CiA-303, CiA-305, CiA-306 and CiA-402 (4.0) compliant.

125 kbps to 1 Mbps (default). Non-isolated. Termination resistor not included.

_{Note: Ethernet ports can be used to configure the drive.}

IEC 60068-2

MIL-STD-810G

-20 ºC to +85 ºC

_{Check the Current Derating section below.}

-40 ºC to +85 ºC

_{Check the Current Derating section below.}

-40 ºC to +100 ºC

-50 ºC to +100 ºC

up to 95%, non-condensing at 85 ºC

up to 95%, non-condensing at 85 ºC

-400 m to 2000 m

-400 m to 10000 m

> 450.000 h

_{Based on FIDES method for Standard Life Profile at 40 °C average. Other scenarios available on demand.}

> 110.000 h

_{Based on FIDES method for "Equipment (in avionics bay) mounted in a medium haul civil aircraft" at 40 ºC average. Other scenarios available on demand.}

Basic insulation according to IEC 61800-5-1.

> 200 MΩ. Measured between PE (case) and GND_P and +SUP and phases.

_{Note: The drive includes 2 nF EMC capacitance between the power supply negative (GND_P) and the enclosure (PE).}

34.5 mm x 26 mm

14.25 mm (including Mezzanine connector)

17 mm (including full length of the power pins)

CE Marking

• LVD: Low voltage directive (2014/35/EU)
• EMC: Electromagnetic Compatibility Directive (2014/30/EU)
• Safety: Machinery Directive (2006/42/EC)
• RoHS 3: Restriction of Hazardous Substances Directive (2011/65/UE + 2015/863/EU)

• EN 61800-5-1:2007

• EN 61800-3:2018 Category C3

• IEC/EN 61800-5-1: Adjustable speed electrical power drive systems - Safety requirements - Electrical, thermal and energy

Safe Torque Off (STO)

• EN 61800-5-2:2016 : SIL3
• EN ISO 13849-1:2015 : PLe Cat. 3

See Safety Manual - Safe Torque Off (STO) section for mandatory Integration Requirements.

IEC 60068-2:

• IEC 60068-2-1:2007: Test Ad, Cold
• IEC 60068-2-2:2007: Test Be, Dry Heat
• IEC 60068-2-38:2009: Test Z/AD, Composite temperature / humidity cyclic
• IEC 60068-2-78:2012: Test Cab, Damp heat, steady state
• IEC 60068-2-6:2007: Test Fc: Vibration (sinusoidal)
• IEC 60068-2-27:2008: Test Ea: Shock

MIL-STD-810G:

• Test Method 500.5: Low Pressure (Altitude)
• Test Method 501.5: High temperature
• Test Method 502.5: Low Temperature
• Test Method 503.5: Temperature Shock
• Test Method 514.6: Vibration
• Test Method 516.6: Shock
• Test Method 507.5: Humidity
