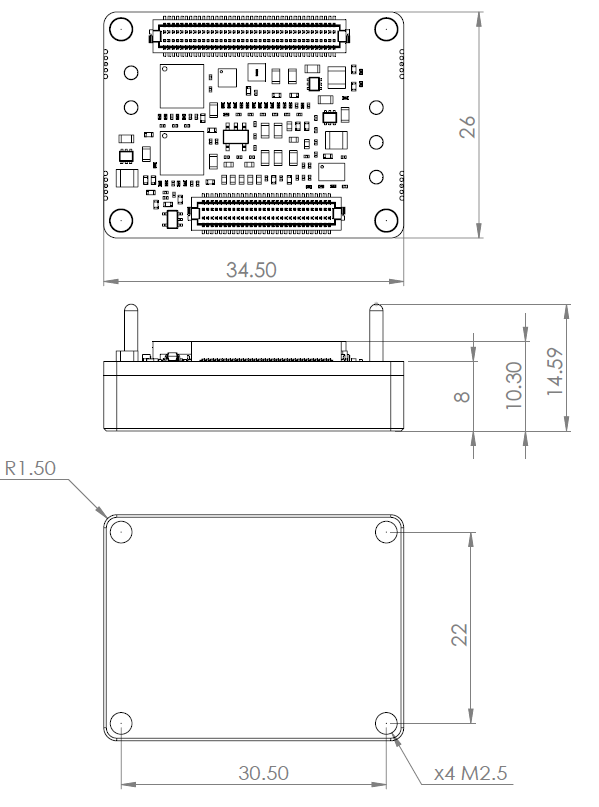

All dimensions are in mm. All tolerances ≤ ±0.2 mm
Drawings shown below could downloaded here.
3D Model
For further detail, download the STEP model or the PDF3D.
