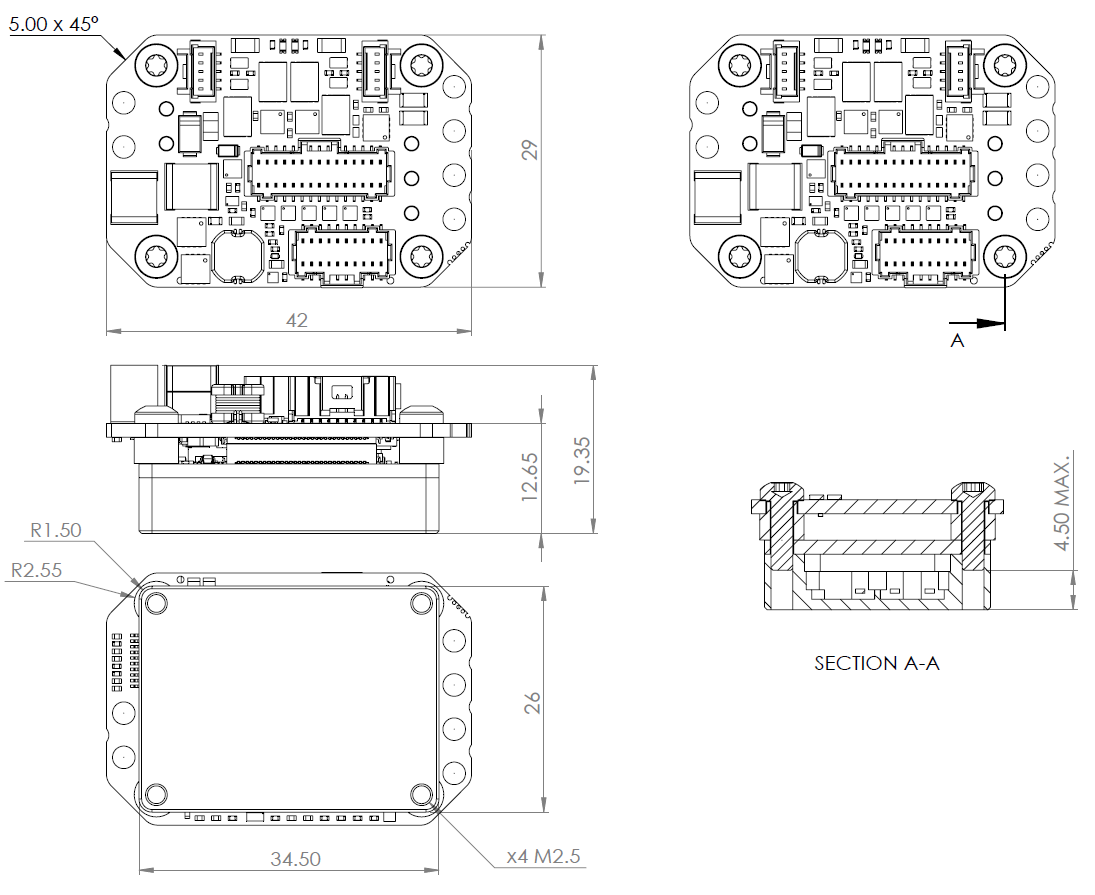

Dimensions
All dimensions are in mm. All tolerances ≤ ±0.2 mm.
Drawings shown below could be downloaded here.
Assembly instructions are indicated in Installation chapter.
3D Model
For further detail, download the STEP model from the Downloads section.
The drawings and dimensions below are indicative of the biggest-case scenario. Some versions of this drive use alternative components with the same performance but smaller dimensions.
