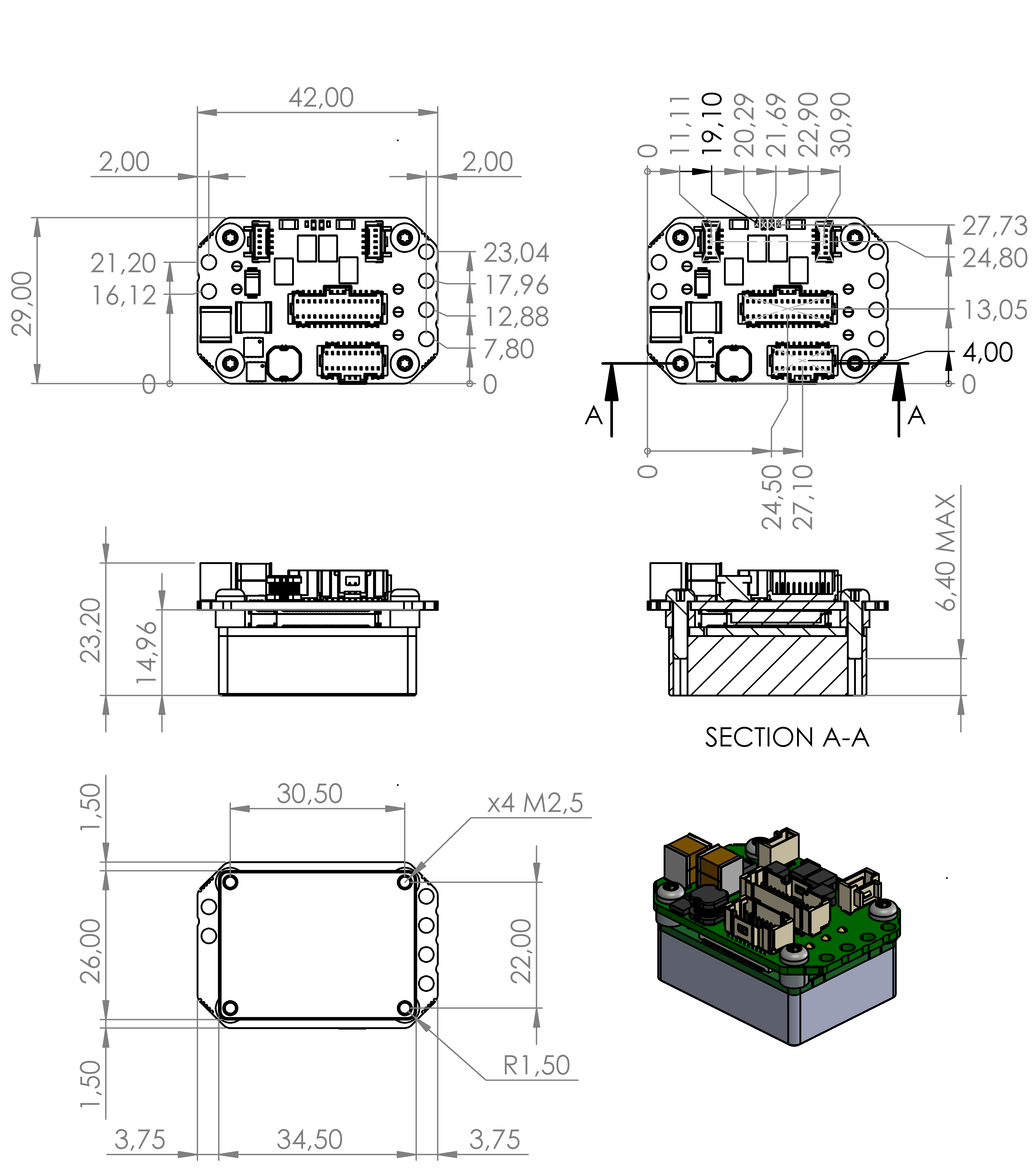

Dimensions

All dimensions are in mm.  All tolerances ≤ ±0.2 mm. Assembly instructions are indicated here: Installation.

3D Model

For further detail, download the STEP model from the Downloads section.
